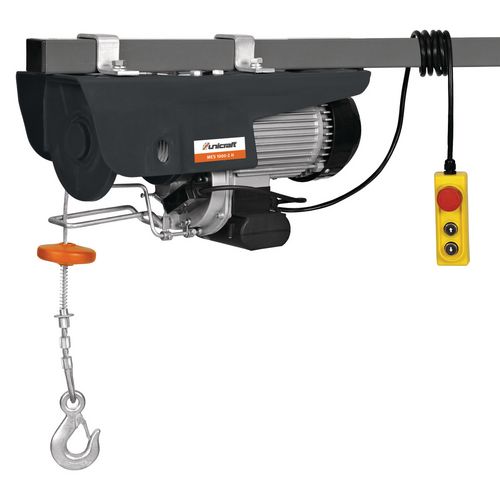

    Mini electric cable

    MES 1000-2 H

    for maximum strength and mobility

    359,00 EUR excl. Tax / pc(s).
    427,21 EUR incl. 19% Tax / pc(s).
    Promotional price *
    339,00 EUR excl. Tax / pc(s).
    403,41 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 6198399

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Integrated transport handle for mobile use
    • Pulley with load hook
    • Two double clamps for easy installation
    • Operating unit insulated to IP 54
    • Limit switch for immediate switch-off in the upper and lower end positions



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Control unit cable length1.5 m
    Lifting force without deflection pulley500 kg
    Lifting force with deflection pulley999 kg
    Stroke without deflection pulley12 m
    Stroke with deflection pulley6 m
    Max. lifting speed without deflection pulley8 m/min
    Max. lifting speed with deflection pulley4 m/min
    VPE1
    Dimensions and weights
    Cable diameter6 mm
    Inside dimensions of fastening clamps60 x 60 mm
    Length approx.536 mm
    Width/depth approx.187 mm
    Height approx.260 mm
    Weight approx.33 kg
    Electrical Data
    Degree of protectionIP 54
    Main motor1600 W
    Supply voltage230 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1

    • Two fastening clamps
    • One pulley hook
    • Four screws and washers
