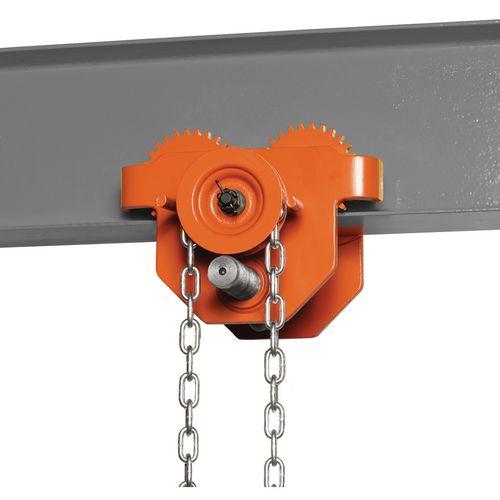

Geared trolley
HFW 0.5
Maximum with 500 kg load capacity
84,90
EUR excl. Tax / pc(s).
101,03 EUR incl. 19% Tax / pc(s).
101,03 EUR incl. 19% Tax / pc(s).
Promotional price *
82,90 EUR excl. Tax / pc(s).98,65 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 6171800
Are you interested in this product?
Put a request
Find Trader
Productdetails
- No lateral hiking on the crossbeam by centric suspension of the pulley
- Adjustment to the beam flange width is carried out by Ösentraverse with mating thread
- Standard anti-tilt device
- Low height and compact design
- For use on I-beams (DIN 1025-1)
- Quiet running characteristic by ball bearing
| Load capacity | 0.5 t |
| Chain length | 3 m |
| Min. curve radius | 0.5 m |
| Carrier flange width | 55 – 220 mm |
| Suitable for carrier type | I 120 – I 600 |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 352.5 mm |
| Width/depth approx. | 198 mm |
| Height approx. | 158 mm |
| Weight approx. | 8.5 kg |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
