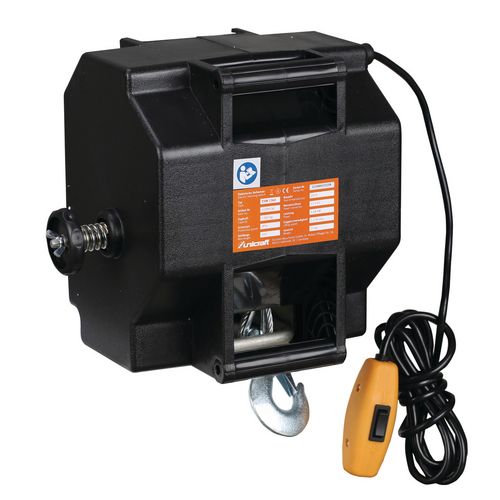

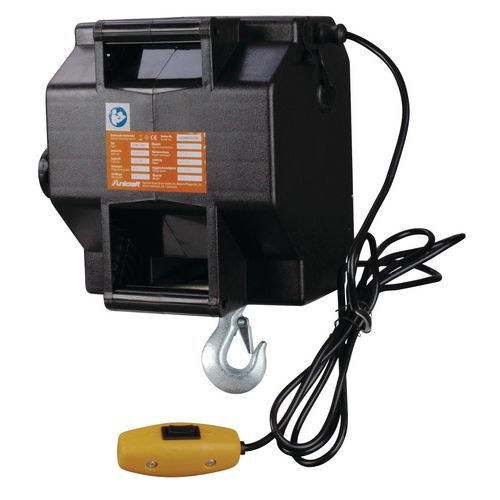

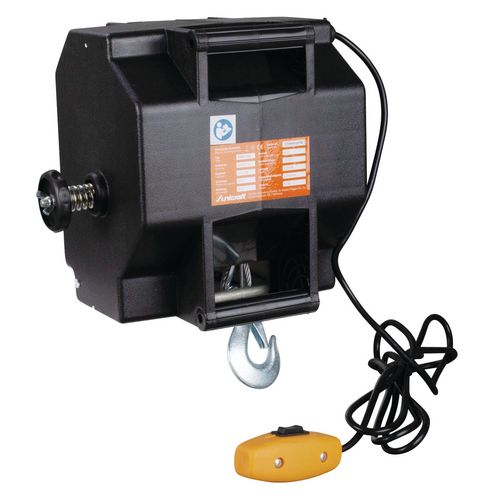

Electric winch
ESW 1360
For vehicle use, eg for pulling machines over a ramp into a pickup truck
215,00
EUR excl. Tax / pc(s).
255,85 EUR incl. 19% Tax / pc(s).
255,85 EUR incl. 19% Tax / pc(s).
Promotional price *
189,00 EUR excl. Tax / pc(s).224,91 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 6199136
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Compact and robust
- Adjustable friction clutch to protect the winch from overload
- Operation by hand crank or wired remote control
| Control unit cable length | 3 m |
| Traction | 1360 kg |
| Line Speed | 1.22 m/min |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Cable length | 9 m |
| Cable diameter | 5.6 mm |
| Length approx. | 270 mm |
| Width/depth approx. | 290 mm |
| Height approx. | 205 mm |
| Weight approx. | 15 kg |
| Electrical Data | |
|---|---|
| Degree of protection | IP 54 |
| Main motor | 0.48 kW |
| Supply voltage | 12 V |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

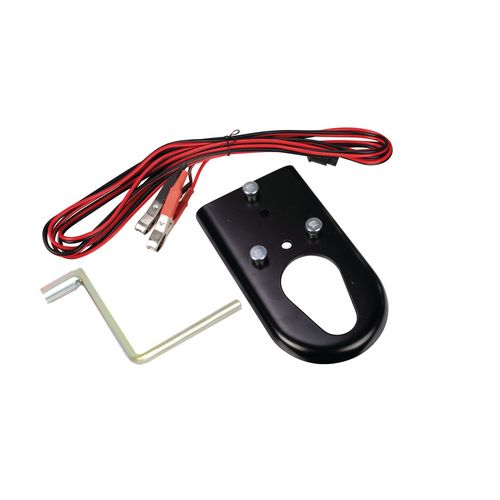

- Remote control with 3 m cable connection
- winch
