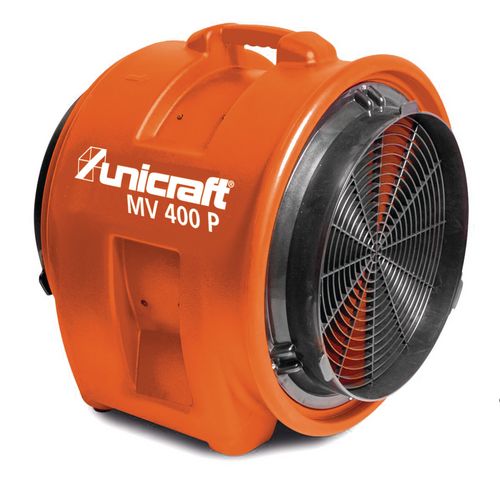

Axial fan
MV 400 P
Portable, rugged device
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 6261040
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Fresh air supply in poorly ventilated or closed rooms such as basement
- Removal of humid air, warm air, welding smoke, smoke, exhaust fumes or odors
- Cooling, aerating, drying and air circulation in large rooms such as factory buildings, workshops, warehouses, construction sites, etc.
- Housing made of high-density polypropylene for long durability
- Large fan generates a large amount of air
equipment
- Ventilation, ventilation and air circulation even over long distances after connection of the air transport hoses available as accessories
- Longer hose distances possible by connecting several air transport hoses
| Dimensions and weights | |
|---|---|
| Outlet dimensions | Ø 392 mm |
| Diameter intake | 392 mm |
| Connection cable length | 4,5 m |
| Length approx. | 560 mm |
| Width/depth approx. | 545 mm |
| Height approx. | 590 mm |
| Weight approx. | 17 kg |
| Electrical Data | |
|---|---|
| Absorbed power drive motor | 0,75 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| General Features | |
|---|---|
| Max. air flow | 7220 m³/h |
| Noise emission | |
|---|---|
| Noise level | 86.5 dB(A) |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
