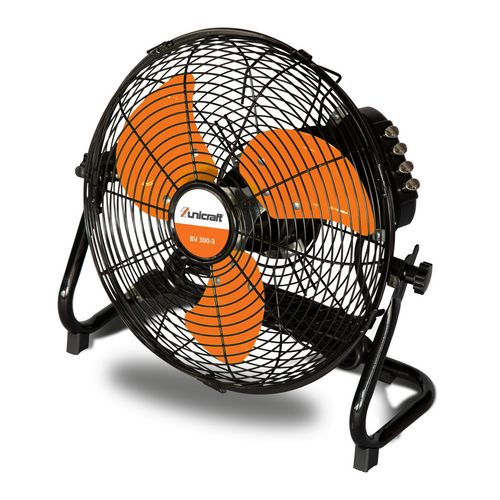

Floor fan
BV 300-3
in a stable all-metal design and three speed
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 6265133
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Directly driven motor with copper winding
- Three high-performance fan blades made of balanced steel
- Fan angle easily adjustable
- Powder-coated protective grille
- Solid rubber feet for high stability
- Three high-performance fan blades made of balanced steel
- Fan angle easily adjustable
- Solid rubber feet for high stability
| Dimensions and weights | |
|---|---|
| Outlet dimensions | 390 mm |
| Diameter intake | 390 mm |
| Basket diameter | 390 mm |
| Connection cable length | 1.8 m |
| Length approx. | 390 mm |
| Width/depth approx. | 160 mm |
| Height approx. | 380 mm |
| Weight approx. | 3.1 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 52 W |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| General Features | |
|---|---|
| Air flow at speed 1 | 1700 m³/h |
| Air flow at speed 2 | 2040 m³/h |
| Air flow at speed 3 | 2295 m³/h |
| Speed levels | 3 |
| Noise emission | |
|---|---|
| Noise level | 55 dB(A) |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
