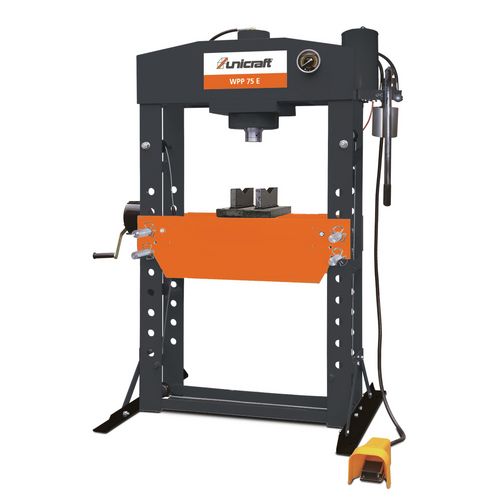

Hydraulic workshop press
WPP 75 E
Robust press with conventional equipment
3.199,00
EUR excl. Tax / pc(s).
3.806,81 EUR incl. 19% Tax / pc(s).
3.806,81 EUR incl. 19% Tax / pc(s).
Promotional price *
2.899,00 EUR excl. Tax / pc(s).3.449,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 6300075
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Ideal for versatile use in crafts and repairs in schools, training workshops, garages, workshops, agriculture, forestry and horticulture
- Press cylinder with integrated return spring
- Display of the pressure via pressure gauge
- Nine-stage height-adjustable table with locking bolts
- Two-stage fast hydraulic hand pump with high stroke frequency
- Side movable cylinder
- Piston feed either by hydraulic hand pump or pneumatic foot control possible
| Pressure force | 75 t |
| Piston stroke | 250 mm |
| Piston travel | 260 mm |
| Piston stroke per pumping operation footpedal | 2.66 mm |
| Piston speed with foot pedal | 2.58 mm/s |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Width/depth of machine feet | 800 mm |
| Frame depth | 217 mm |
| Hole spacing for table height adjustment | 102 mm |
| Clear height max. | 884 mm |
| Clear height min. | 170 mm |
| Clear width | 800 mm |
| Diameter piston rod | 93 mm |
| Length approx. | 1146 mm |
| Width/depth approx. | 800 mm |
| Height approx. | 1925 mm |
| Weight approx. | 451 kg |
| Hydraulic system | |
|---|---|
| Hydraulic oil tank capacity | 4 l |
| Pneumatic connection | |
|---|---|
| Air consumption approx. | 200 l/min |
| Pneumatic operating pressure | 7.5 – 8.5 bar |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
