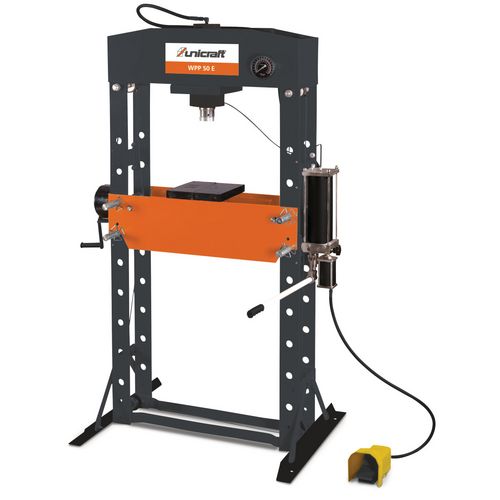

Hydraulic workshop press
WPP 50 E
Robust press with conventional equipment
2.049,00
EUR excl. Tax / pc(s).
2.438,31 EUR incl. 19% Tax / pc(s).
2.438,31 EUR incl. 19% Tax / pc(s).
Promotional price *
1.849,00 EUR excl. Tax / pc(s).2.200,31 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 6300050
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Ideal for versatile use in crafts and repairs in schools, training workshops, garages, workshops, agriculture, forestry and horticulture
- Press cylinder with integrated return spring
- Display of the pressure via pressure gauge
- Robust welded frame with perforation: eight-level height-adjustable press table with locking pin
- With laterally displaceable cylinder
- Piston feed either by hydraulic hand pump or pneumatic foot switch possible
| Pressure force | 50 t |
| Piston stroke | 200 mm |
| Piston travel | 245 mm |
| Piston stroke per pumping operation footpedal | 2.08 mm |
| Piston speed with foot pedal | 1.33 mm/s |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Width/depth of machine feet | 800 mm |
| Frame depth | 207 mm |
| Hole spacing for table height adjustment | 140 mm |
| Clear height max. | 1048 mm |
| Clear height min. | 69 mm |
| Clear width | 730 mm |
| Diameter piston rod | 75 mm |
| Length approx. | 1030 mm |
| Width/depth approx. | 800 mm |
| Height approx. | 1877 mm |
| Weight approx. | 302.5 kg |
| Hydraulic system | |
|---|---|
| Hydraulic oil tank capacity | 1.8 l |
| Pneumatic connection | |
|---|---|
| Air consumption approx. | 200 l/min |
| Pneumatic operating pressure | 7.5 – 8.5 bar |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
