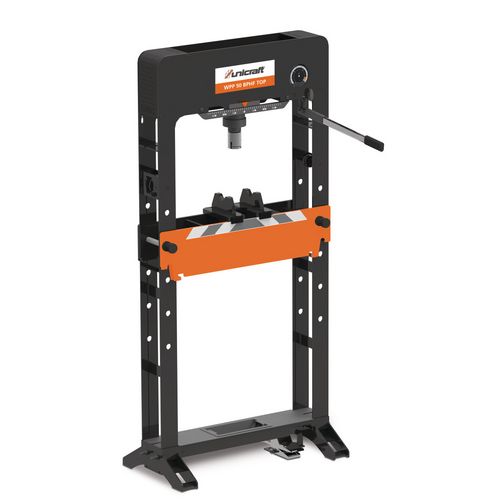

Hydraulic workshop press
WPP 50 BPHF TOP
High quality press with patented prismatic guide system
2.459,00
EUR excl. Tax / pc(s).
2.926,21 EUR incl. 19% Tax / pc(s).
2.926,21 EUR incl. 19% Tax / pc(s).
Promotional price *
2.099,00 EUR excl. Tax / pc(s).2.497,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 6320151
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Ideal for versatile use in
trades and for repairs in schools, training workshops, garages, workshops, agriculture, forestry and horticulture - Press cylinder with integrated return spring

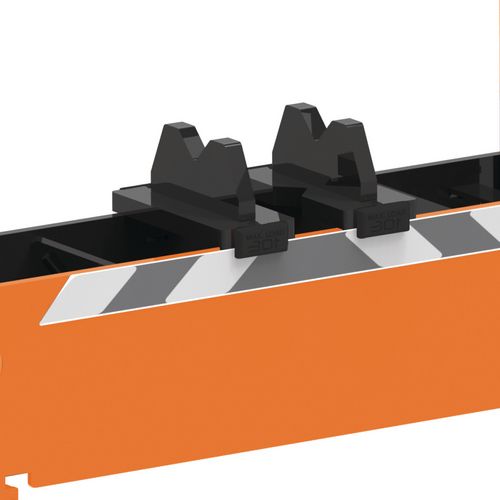

- Patented guide system guarantees optimum positioning of the prism blocks
- Practical collection container in the press foot
- Height-adjustable press table with locking bolt
- Press pressure display via pressure gauge
- Piston feed by hydraulic hand pump or pneumatic foot lever

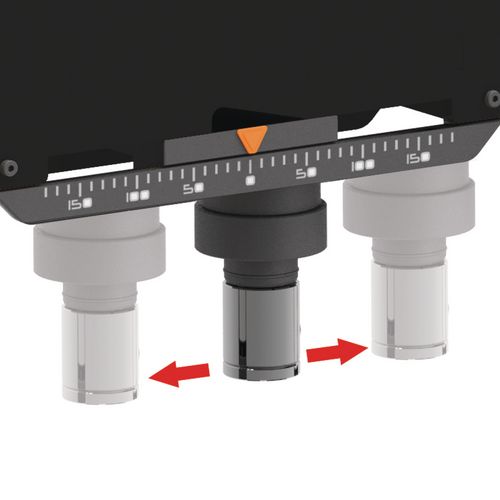

- Sideways movable cylinder with scale display
- Winch for raising and lowering the table
| Pressure force | 50 t |
| Piston stroke | 120 mm |
| Piston travel | 75 mm |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Diameter cylinder | 118 mm |
| Diameter piston rod | 76.2 mm |
| Clear width | 720 mm |
| Clear height min. | 84 mm |
| Clear height max. | 770 mm |
| Hole spacing for table height adjustment | 150 mm |
| Frame depth | 162 mm |
| Width/depth of machine feet | 490 mm |
| Length approx. | 890 mm |
| Width/depth approx. | 490 mm |
| Height approx. | 1900 mm |
| Weight approx. | 191 kg |
| Hydraulic system | |
|---|---|
| Oil capacity (empty cylinder) | 1.25 l |
| Pneumatic connection | |
|---|---|
| Pneumatic operating pressure | 7 bar |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
1 pair of prism blocks
