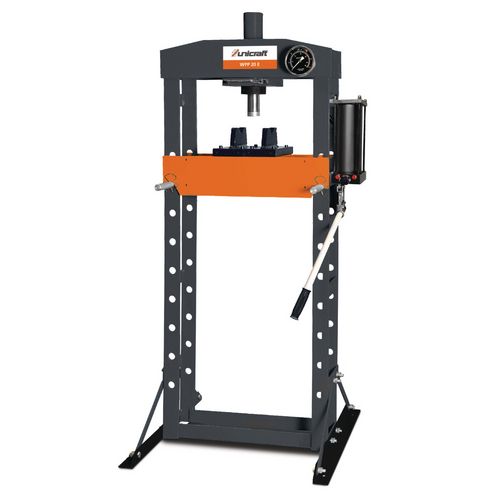

    Productimage for WPP 20 E
    Brandimage to Product WPP 20 E

    Hydraulic workshop press

    WPP 20 E

    Robust press with conventional equipment

    729,00 EUR excl. Tax / pc(s).
    867,51 EUR incl. 19% Tax / pc(s).
    Promotional price *
    659,00 EUR excl. Tax / pc(s).
    784,21 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Sicherheitsdatenblatt

    Safety and warning notices

    Art.-No. 6300020

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Ideal for versatile use in crafts and repairs in schools, training workshops, garages, workshops, agriculture, forestry and horticulture
    • Press cylinder with integrated return spring
    • Display of the pressure via pressure gauge



    • Robust welded frame with perforation: ten-level height-adjustable press table with locking pin
    • Piston feed via hydraulic hand pump
    • Laterally displaceable cylinder



    Data sheets
    Sicherheits- und Warnhinweise
    Sicherheitsdatenblatt
    Safety and warning notices
    Pressure force20 t
    Piston stroke186.5 mm
    Piston travel176 mm
    Piston stroke per pumping operation footpedal4.92 mm
    VPE1
    Dimensions and weights
    Diameter piston rod48 mm
    Clear width510 mm
    Clear height min.38.5 mm
    Clear height max.918.5 mm
    Hole spacing for table height adjustment110 mm
    Frame depth132 mm
    Width/depth of machine feet560 mm
    Length approx.730 mm
    Width/depth approx.560 mm
    Height approx.1625 mm
    Weight approx.105 kg
    Hydraulic system
    Hydraulic oil tank capacity1.8 l
    Unit: pc(s).
    Packaging unit: 1
