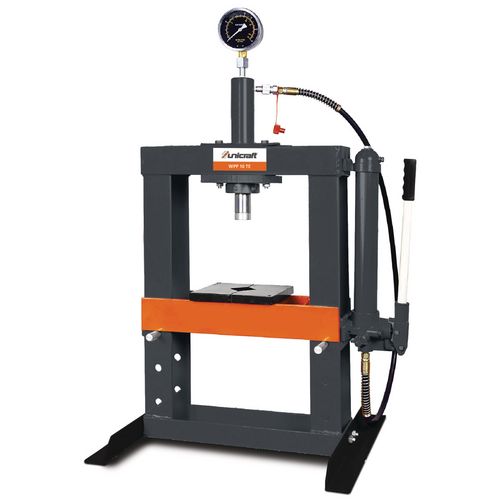

    Productimage for WPP 10 TE
    Brandimage to Product WPP 10 TE

    Hydraulic workshop press

    WPP 10 TE

    Robust press with conventional equipment

    279,00 EUR excl. Tax / pc(s).
    332,01 EUR incl. 19% Tax / pc(s).
    Promotional price *
    249,00 EUR excl. Tax / pc(s).
    296,31 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 6300011

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Ideal for versatile use in crafts and repairs in schools, training workshops, garages, workshops, agriculture, forestry and horticulture
    • Press cylinder with integrated return spring
    • Display of the pressure via pressure gauge



    • Table press with low height
    • Three-stage height-adjustable press table with locking pin
    • Piston feed via hydraulic hand pump



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Pressure force10 t
    Piston stroke175 mm
    Piston stroke per pumping operation footpedal1.78 mm
    VPE1
    Dimensions and weights
    Diameter piston rod40 mm
    Clear width340 mm
    Clear height min.194 mm
    Clear height max.364 mm
    Hole spacing for table height adjustment85 mm
    Frame depth110 mm
    Width/depth of machine feet495 mm
    Length approx.570 mm
    Width/depth approx.495 mm
    Height approx.1058 mm
    Weight approx.54.7 kg
    Hydraulic system
    Hydraulic oil tank capacity0.6 l
    Unit: pc(s).
    Packaging unit: 1
