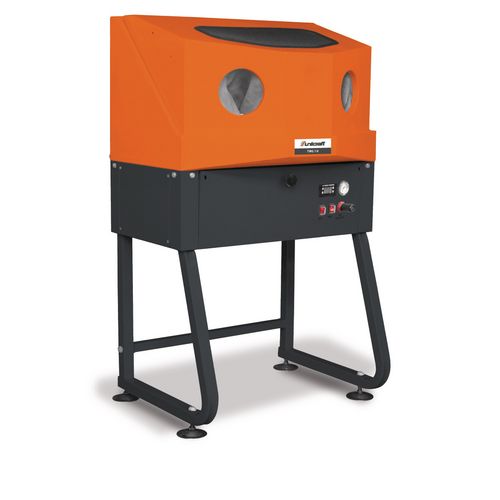

    Parts Washer

    TWG 1 H

    Parts washer with heating function for efficient cleaning of mechanical components

    459,00 EUR excl. Tax / pc(s).
    546,21 EUR incl. 19% Tax / pc(s).
    Promotional price *
    439,00 EUR excl. Tax / pc(s).
    522,41 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 6220011

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

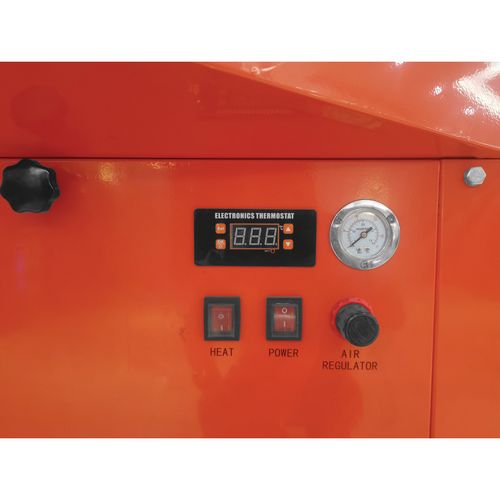

    • Digital temperature control that allows the solvent temperature to be set precisely
    • Large, smooth-running lid for quick and easy loading and unloading
    • Optimum view of the work area thanks to interior lighting and large viewing window

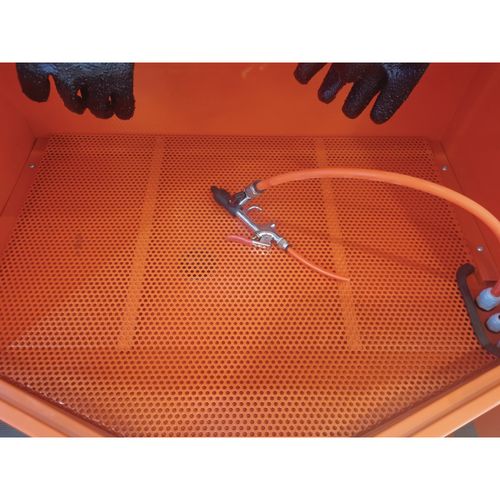

    • Efficient cleaning and drying thanks to cleaning gun with dual function
    • Automatic switch-off when the solvent level is low or the lid is open
    • Integrated compressed air connection for a reliable air supply



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Cabine capacity140 l
    Max. weight on support grille40 kg
    Speed of circulation0.8 l/min

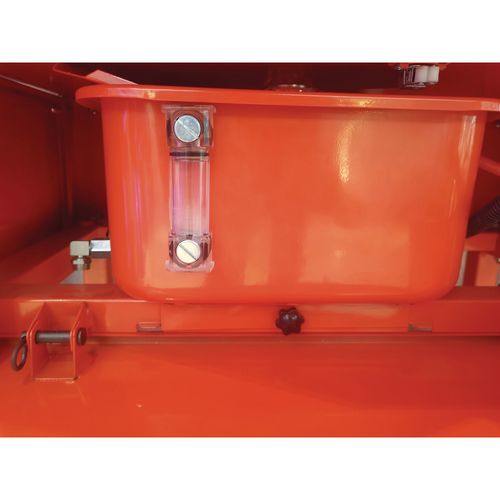

    Minimum solvent capacity8 – 14 l
    VPE1
    Dimensions and weights
    Inner cabin length736 mm
    Inner cabin width/depth560 mm
    Inner cabin height450 mm
    Hand hole diameter100 mm
    Length approx.790 mm
    Width/depth approx.610 mm
    Height approx.1260 mm
    Weight approx.46 kg
    Electrical Data
    Connection cable length2 m
    Absorbed power drive motor1.25 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Pneumatic connection
    Working pressure5 – 8 bar
    Approx. requirement140 l/min
    Connection thread¼ "
    Unit: pc(s).
    Packaging unit: 1
