Sandblasters

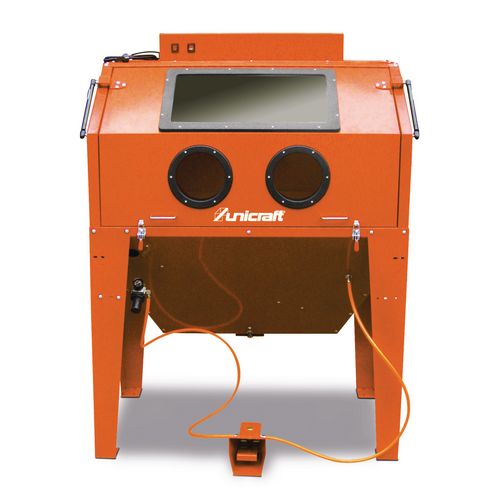

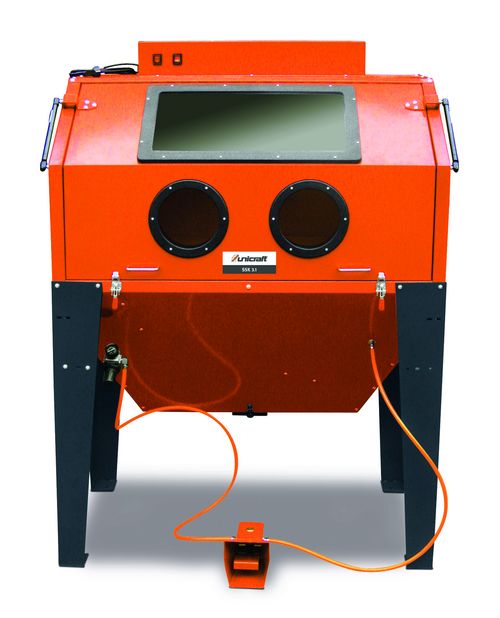

SSK 3.1
For clean blasting without pollution of the working environment
1.549,00
EUR excl. Tax / pc(s).
1.843,31 EUR incl. 19% Tax / pc(s).
1.843,31 EUR incl. 19% Tax / pc(s).
Promotional price *
1.269,00 EUR excl. Tax / pc(s).1.510,11 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 6204005
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Suitable for various blasting materials, eg quartz, glass ball, plastic ball, etc.
- Ideal for cleaning, rust removal or paint removal of metal parts of all kinds, eg engine parts, fittings, signs, housings, rims, hinges
- High-quality work gloves made of latex are firmly attached to the housing
- Optimum vision and work safety during workpiece machining due to the lens with glued-on protective foil
- Dust-free work due to circumferential seals on cover and door frame
- Stable storage grid allows laying of workpieces in the cabin interior
- With drain opening for changing the blasting material
- Suction pipe for the blasting material attached to the bottom of the collecting container
- With compressed air connection on the outside
- Glass bead blasting, corundum blasting, silicon carbide, plastic blasting, etc. can be used
Room amenities:

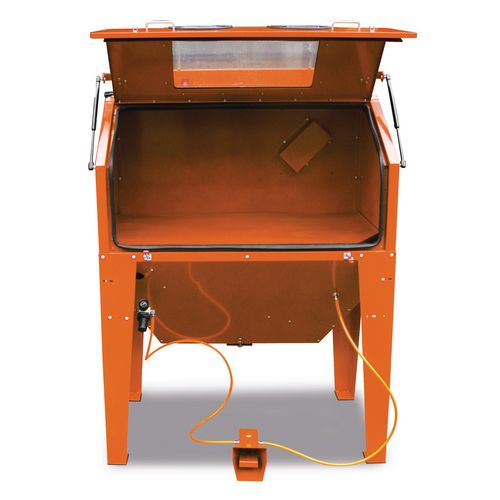

- Very large, upwardly opening front flap with gas springs for quick and easy loading and unloading
- Integrated extraction system with replaceable air filter
- Blasting gun without finger trigger - Air flow control via foot pedal
- Two fluorescent tubes (230 volts), in a separate housing with protective screen and interchangeable protective foil, including five replacement foils
- Light switch with dual function: Exhaust and cabin lighting are switched on and off at the same time
- Regulation of working pressure via pressure regulator with manometer
| Air requirement average, approx. | 400 – 800 l/min |
| Working pressure | 3.4 – 8.0 bar |
| Abrasive grain size recommended | 0.2 – 0.3 mm |
| Max. abrasive grain size | 0.125 – 0.45 mm |
| Max. load of grid | 120 kg |
| Max. weight of blast media | 75 kg |
| Extraction performance | 17.4 m³/h |
| Extraction unit negative pressure | 8.5 kPa |
| Extraction unit volume flow | 156 m³/h |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Cabin volume | 360 l |
| Cabin interior length | 1160 mm |
| Cabin interior width | 580 mm |
| Cabin interior height | 580 mm |
| Diameter of hand hole | 175 mm |
| Length approx. | 1225 mm |
| Width/depth approx. | 935 mm |
| Height approx. | 1640 mm |
| Weight approx. | 115 kg |
| Electrical Data | |
|---|---|
| Extraction absorbed power | 1.2 kW |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- High quality blasting gun with ceramic nozzle
- 4 ceramic nozzles (6/6/7/7 mm)
- 5 replacement foils for viewing windows
