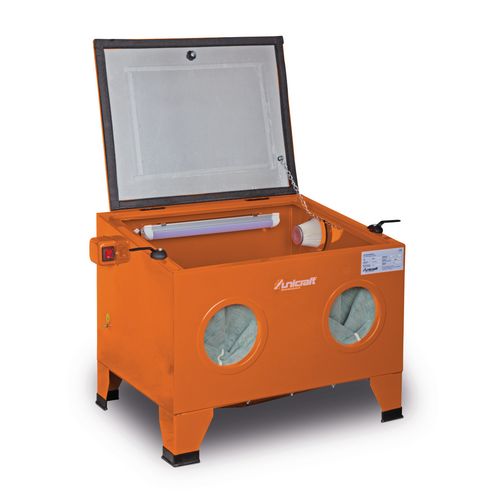

Sandblasters
SSK 1
Sandblast cabins for clean blasting without pollution of the working environment
175,00
EUR excl. Tax / pc(s).
208,25 EUR incl. 19% Tax / pc(s).
208,25 EUR incl. 19% Tax / pc(s).
Promotional price *
149,00 EUR excl. Tax / pc(s).177,31 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 31.08.2025 in Germany.
Art.-No. 6204000
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Suitable for various blasting materials, eg quartz, glass ball, plastic ball, etc.
- Ideal for cleaning, rust removal or paint removal of metal parts of all kinds, eg engine parts, fittings, signs, housings, rims, hinges
- High-quality work gloves made of latex are firmly attached to the housing
- Optimum vision and work safety during workpiece machining due to the lens with glued-on protective foil
- Dust-free work due to circumferential seals on cover and door frame
- Stable storage grid allows laying of workpieces in the cabin interior
- With drain opening for changing the blasting material
- Suction pipe for the blasting material attached to the bottom of the collecting container
- With compressed air connection on the outside
- Glass bead blasting, corundum blasting, silicon carbide, plastic blasting, etc. can be used
Room amenities:
- 12 volt fluorescent tube with 230 volt power supply and external switch
| Air requirement average, approx. | 200 – 350 l/min |
| Working pressure | 2.8 – 8.0 bar |
| Abrasive grain size recommended | 0.2 – 0.3 mm |
| Max. abrasive grain size | 0.125 – 0.45 mm |
| Max. load of grid | 10 kg |
| Max. weight of blast media | 12 kg |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Cabin volume | 90 l |
| Cabin interior length | 580 mm |
| Cabin interior width | 480 mm |
| Cabin interior height | 300 mm |
| Diameter of hand hole | 155 mm |
| Length approx. | 590 mm |
| Width/depth approx. | 489 mm |
| Height approx. | 490 mm |
| Weight approx. | 17.25 kg |
| Opening hatch (see drawing) | |
|---|---|
| A | 534 mm |
| B | 441 mm |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- High quality blasting gun with ceramic nozzle
- 4 ceramic nozzles (4/5/6/7 mm)
- 5 replacement foils for viewing windows
