    Brandimage to Product For hole grid Ø 20 mm Set 1

    Clamping system

    For hole grid Ø 20 mm Set 1

    405,00 EUR excl. Tax / pc(s).
    481,95 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 6112018

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Starter Kit with various clamps and anchoring elements
    • Suitable for a wide range of lifting and clamping situations
    • Everything handy and tidy on the wall panel
    • Wall panel expandable



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Clamp length244 / 253 mm
    Clamp pressure directionvertical / horizontal
    Clamp holding force3,0 kN
    Height compensation max.40 / 0 mm
    Stroke compensation max.0 / 35 mm
    Stroke compensation automatic35 / 13 mm
    Clamp fixationPerforated grid Ø20 mm
    Clamping bolt diameter20 mm
    Adapter plate diameter140 mm
    VPE1
    Dimensions and weights
    Length approx.450 mm
    Height approx.700 mm
    Weight approx.8.5 kg
    Unit: pc(s).
    Packaging unit: 1

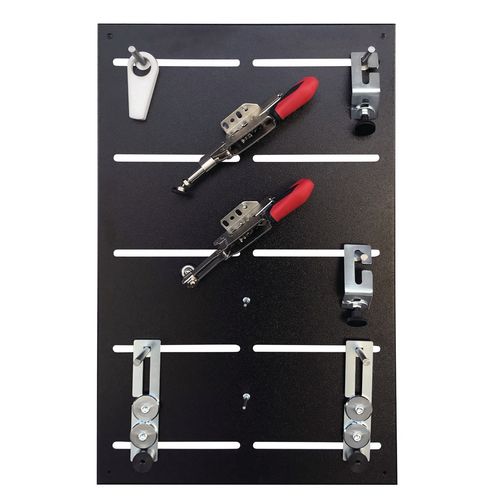

    • 1 sheet steel filing panel, powder-coated 700 x 450 mm with locating pins
    • 1 horizontal clamp with clamping bolt
    • 1 vertical clamp with clamping bolt
    • 4 clamping bolts ø20 mm with washer
    • 2 plates open 180 x 40 with thread
    • 2 swivel bearings with grub screw for eccentric clamp
    • 2 eccentric clamps plastic
    • 2 angles open 80 x 40 x 60
    • 2 stop screws
