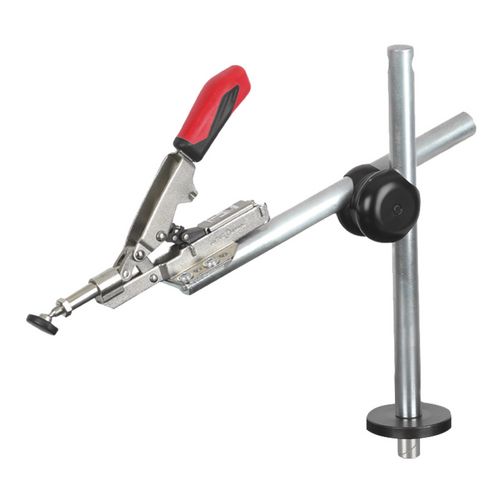

Horizontal clamp on tripod with clamping bolt
for breadboard Ø 20 mm
215,00
EUR excl. Tax / pc(s).
255,85
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 6112015
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Stand with fine-toothed ball joint for simple and stable fixtures
- Stepless compensation function of 13mm for workpieces with different clamping widths
- Stainless steel clamping bolt Ø20mm enables simple, tool-free fixing in hole grid tables
| Clamp length | 253 mm |
| Clamp pressure direction | horizontal |
| Clamp holding force | 3,0 kN |
| Stroke compensation max. | 35 mm |
| Stroke compensation automatic | 13 mm |
| Clamp fixation | Perforated grid Ø 20 mm |
| Clamping bolt diameter | 20 mm |
| Tripod material | Steel galvanized / burnished |
| Tripod height | 300 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- 1 stand with clamping bolt ø 20 mm
- 1 horizontal clamp
