    Productimage for 3 m
    Brandimage to Product 3 m

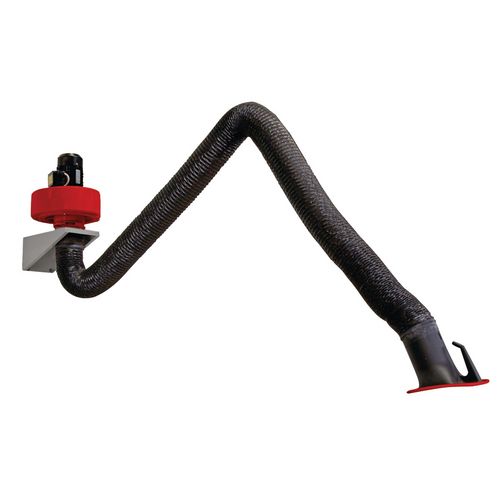

    Welding fumes extraction set

    3 m

    with suction arm and fan

    1.679,00 EUR excl. Tax / pc(s).
    1.998,01 EUR incl. 19% Tax / pc(s).
    Promotional price *
    1.629,00 EUR excl. Tax / pc(s).
    1.938,51 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 31.08.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 1800006

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails



    Application

    • Large quantities of smoke/dust
    • Permanent use
    • Where air filtration is not absolutely necessary
    • Welding fumes, gases, vapours, light dustsube

    Benefits

    • Particularly low noise since the housing is made of cast silumin
    • 40 % less tracking of the extraction arm due to flow-optimized design of the hood
    • User-friendly due to particularly smooth operation of the hood with one hand
    • Holds set position cantilevered due to internal support rod

    Features

    • Retrofittable
    • Integrated lifting device for filter change
    • Easy and quick installation
    • Compact and stable design
    • Mechanical operation of the filter medium



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.2375 mm
    Width/depth approx.435 mm
    Height approx.658 mm
    Weight approx.43.5 kg
    Electrical Data
    Drive motor output0,75 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction
    Max. extraction performance1000 m³/h
    Extraction arm typeHose design
    Extraction hood length360 mm
    Extraction hood width295 mm
    Fan typeRadial ventilator
    Noise emission
    Sound pressure level73 dB(A)
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • fan
    • suction arm with hood
    • wall bracket
    • motor protection switch
    • Set of connecting material
    • Exhaust air duct stretchable from 1.25 - 5.00 m
    • Matching exhaust air connection
