Automatic welding helmet

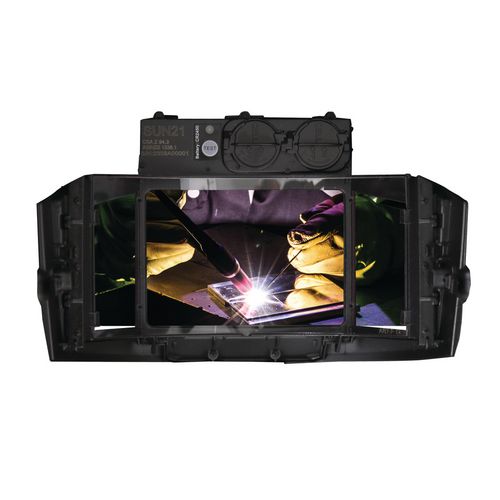

VarioProtect PANORAMA-W-2 TC AIR TH3
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1654115
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Suitable for electrode, MIG/MAG and TIG welding and grinding
- Welding in true color thanks to True Color cassette in the main viewing window
- Comfortable welding with 180° field of vision
- Highly efficient air filtration and air supply system supplies the welder with clean and filtered air, preventing the inhalation of dangerous and harmful particles and welding fumes
- Even air distribution in the helmet
- Easy to operate, even when wearing welding gloves
| Blower breathing protection | |
|---|---|
| Air flow stage 1 | 180 l/min |
| Air flow stage 2 | 220 l/min |
| Filter battery operating time level 1 | 10 h |
| Filter battery operating time level 2 | 9 h |
| Dimensions and weights | |
|---|---|
| Length approx. | 180 mm |
| Width/depth approx. | 240 mm |
| Height approx. | 320 mm |
| Filter cassette | |
|---|---|
| Switch-over response time | 0.3 ms |
| UV/IR protection | Protection level 16 (permanent) |
| Shade | Protection level 4 |
| Solar cells | ✔ |
| Battery type | Lithium battery (CR2450) |
| Battery replaceble | ✔ |
| Number of sensors | 4 |
| Viewing window width | 108 mm |
| Viewing window height | 73 mm |
| Cassette length | 133 mm |
| Cassette width | 122 mm |
| Cassette height | 8 mm |
| Mask | |
|---|---|
| Mask material | Polyamide |
| Standards and certifications | |
|---|---|
| Class | 1/1/1/1 |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
