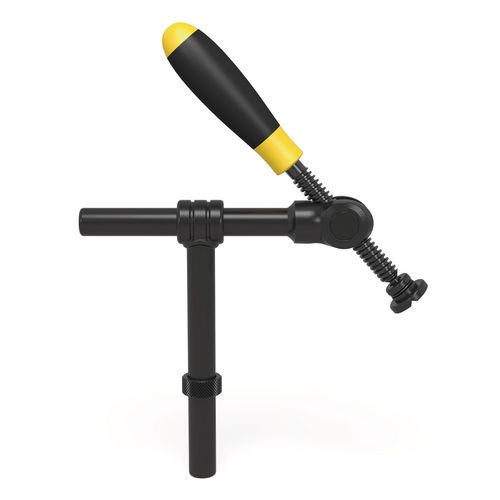

    Pipe Clamp

    Universal - burnished

    Combines the advantages of conventional 45° and 90° screw clamps

    62,00 EUR excl. Tax / pc(s).
    73,78 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 194160604

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Swivel spindle enables flexible clamping at an angle of + / - 42°
    • Can be clamped both at an angle and straight, which opens up many new possibilities and a larger, variable clamping range
    • Infinitely adjustable vertical round tube in combination with the swivel spindle creates a variable clamping range
    • Horizontal and vertical round tube, each 150 mm long
    • Interchangeable prism of the screw clamp to securely fasten all types of welding elements
    • Long service life and high performance thanks to the burnished material and the option of ordering spare parts separately
    • Fixing the vertical tube in the system holes with adjusting ring



    • Prism interchangeable
    • Ball diameter spindle 8 mm
    • Trapezoidal thread spindle 12x3 mm
    • Clamping at an angle of +/- 42
    • Fixing with adjusting ring



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Width/depth approx.165 mm
    Height approx.150 mm
    Weight approx.0.8 kg
    VPE1
    Unit: pc(s).
    Packaging unit: 1
