Workbench - Anniversary offer
Siegmund with aluminum table profiles 1200x700 System 16, height-adjustable
547,00
EUR excl. Tax / pc(s).
650,93
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 190161207LX1
Are you interested in this product?
Put a request
Find Trader
Productdetails
Anniversary offer valid until 31.08.2025 - Welding table 28 Professional Extreme 8.7 including large scope of delivery!
- Surface made of aluminum table profiles equipped with hexagon grooves and system holes
- Additional clamping and fastening options both on the table surface and on the short sides of the workbench
- Table profiles can be replaced individually
- T-slot nuts with M5 or M6 thread
- Robust frame made from aluminum profiles
- Height-adjustable
- Easy attachment of stops, clamping devices or vices
- Our recommendation for assembly or woodwork
- When clamping aluminum parts, the bolts must only be hand-tightened
- Double surface clamping bolt is recommended
- Numerous accessories available
| Table feet | 4 |
| Load capacity approx. | 250 kg |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Table height | 800 mm |
| Max. table height | 975 mm |
| Length approx. | 1200 mm |
| Width/depth approx. | 700 mm |
| Height approx. | 800 mm |
| Weight approx. | 39 kg |
| Tabletop | |
|---|---|
| Length | 1200 mm |
| Width | 700 mm |
| Material | Aluminium |
| Explanation material | Surface made of aluminum table profiles |
| Borehole diameter | 16 mm |
| Borehole spacing | 50 mm |
| Hexagon groove | HX8 |
| Hexagon groove spacing | 50 mm |
| Material thickness | 24 mm |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

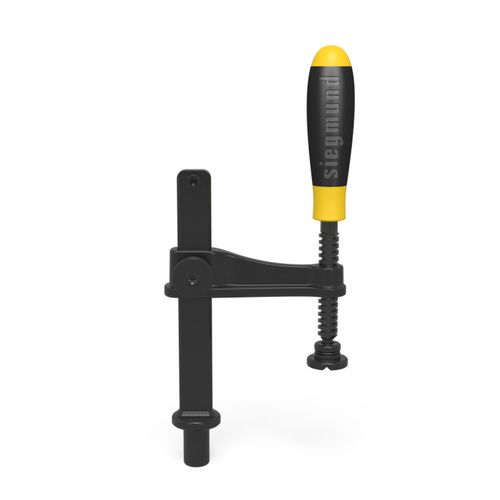

- 4x Basic screw clamp for workbench, nitrided

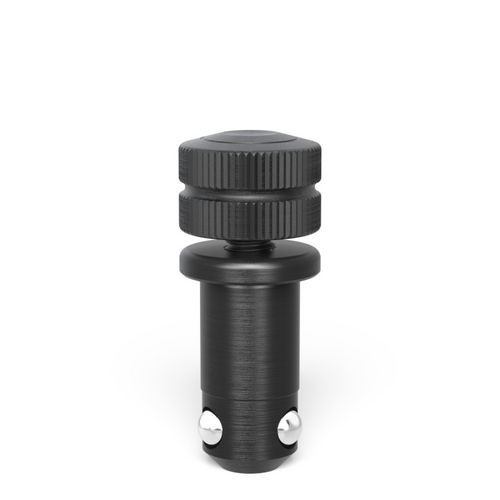

- 8x manual clamping bolts without groove, double burnished

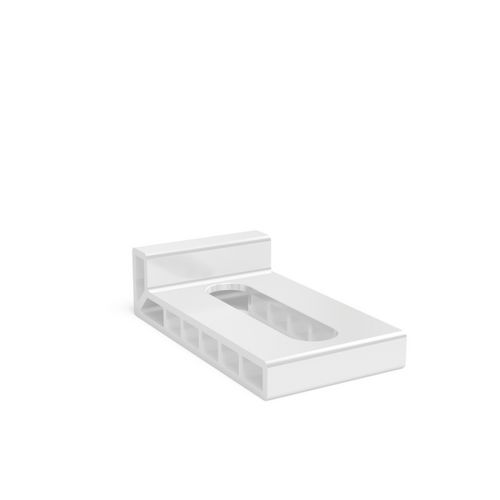

- 4x stop and clamping angle 90 X aluminum

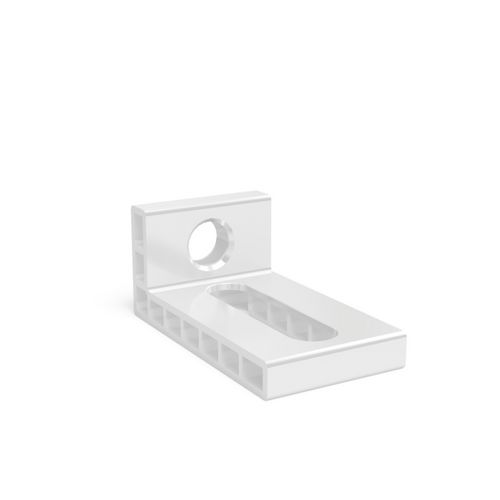

- 4x stop and clamping angle 90 SL aluminum
