Welding table - Anniversary offer

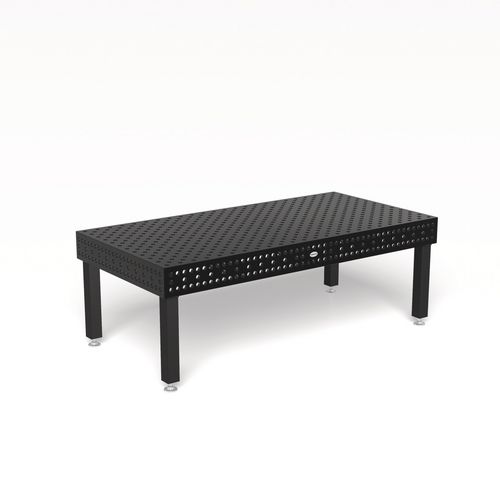

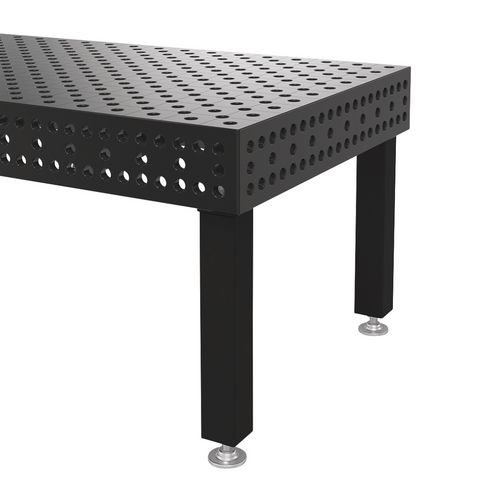

Professional Extreme 8.7 2400x1200x200 Plasma Nitrided Diagonal grid t/s
Surface hardness up to 850 Vickers
6.989,00
EUR excl. Tax / pc(s).
8.316,91
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 190280030XD7DJA
Are you interested in this product?
Put a request
Find Trader
Productdetails
Anniversary offer valid until 31.08.2025 - Welding table 28 Professional Extreme 8.7 including large scope of delivery!
- Table top and side panel holes with a diameter of 28 mm and arranged in a diagonal grid
- Table top made of through-hardened X8.7 tool steel and plasma nitriding
- Side panel made of high-quality steel S355J2+N and plasma nitriding
- Protection against rust, scratches and welding spatter adhesion
- Plasma nitrided using a thermochemical process, making the welding table more corrosion-resistant and more resilient
- Rounded corners, edges and drill holes
- Includes scaling on the surface

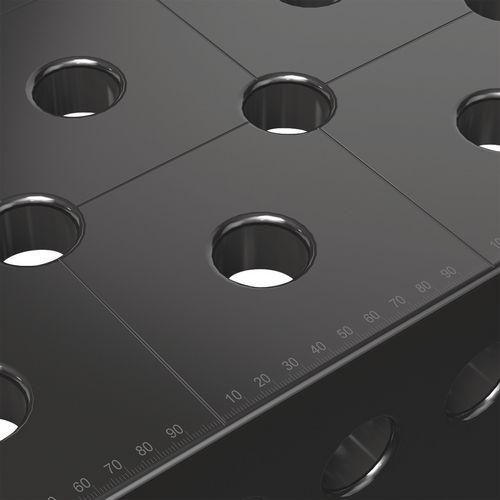

- Grid lines enable precise set-ups

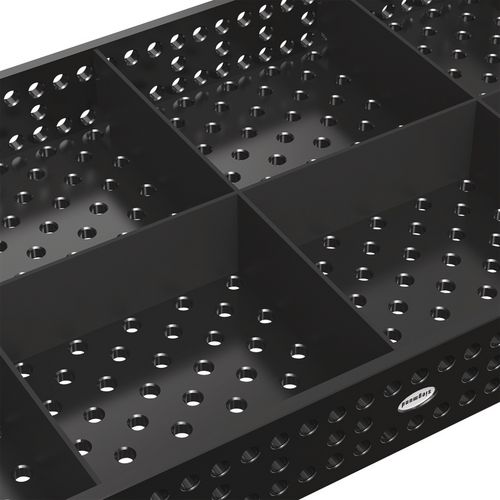

- Construction reinforced with ribs
- Special equipment for welding tables available on request
| Table feet | 4 |
| Load capacity approx. | 4000 kg |
| Explanation load capacity approx. | Maximum recommended total static load with uniform load distribution |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Table height | 850 mm |
| Weight approx. | 947 kg |
| Table side | |
|---|---|
| Height | 200 mm |
| Borehole spacing | 50 mm |
| Basic hardness approx. | 165 – 220 Vickers |
| Surface hardness approx. | 450 – 750 Vickers |
| Tabletop | |
|---|---|
| Length | 2400 mm |
| Width | 1200 mm |
| Material | Through-hardened tool steel X8.7, plasma-nitrided and BAR-coated |
| Explanation material | Side cheeks made of steel S355J2+N, plasma-nitrided |
| Borehole diameter | 28,15 mm |
| Borehole spacing | 100 mm |
| Material thickness | 24.5 – 27 mm |
| Basic hardness approx. | 280 – 340 Vickers |
| Surface hardness approx. | 450 – 850 Vickers |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- 4 table legs 650 x 90 x 90 mm with foot plate Ø 90 mm
- 6x Professional screw clamp - nitrided
- 12x quick-release bolts without groove, double - burnished
- 4x quick-release bolts without groove, triple - burnished
- 8x countersunk bolts without groove, triple burnished
- 4x adapter for screw clamps double - nitrided
- 4x universal stop 225 L - nitrided
- 4x aluminum profile stop 1200x200x50
- 4x stop and clamping angle 500 G-nitrided
- 1x 280402.N Eccentric stop Ø60 with M10 thread - nitrided
- 1x 280852.1 Hexagon socket wrench size 6
- 1x 280820 Brush Ø30 with protective cap
- 1x 000914 CleanBasic 1 liter, spray bottle
- 1x 000924 Non-stick 1 liter, spray bottle
- 1x 280920 Burner holder - burnished
