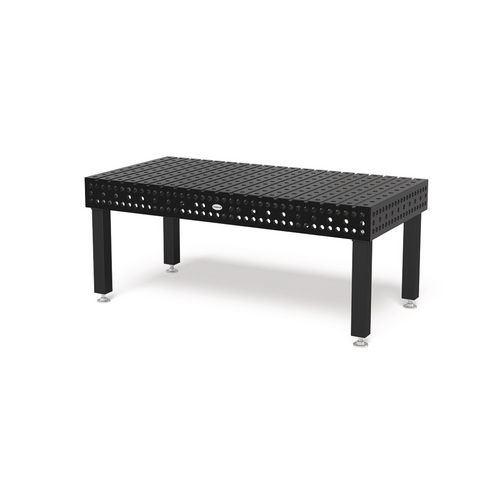

Hexagon 8.7 4000x2000x200 Tool steel plasma nitrided

With transverse slots in a hexagon shape

14.726,00 EUR excl. Tax / pc(s).
17.523,94 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 190280055HNK

Are you interested in this product?

Put a request

Find Trader

Productdetails

Advantages of welding tables and slot tables combined

Combines the advantages of a welding table with those of a slot table in one product.

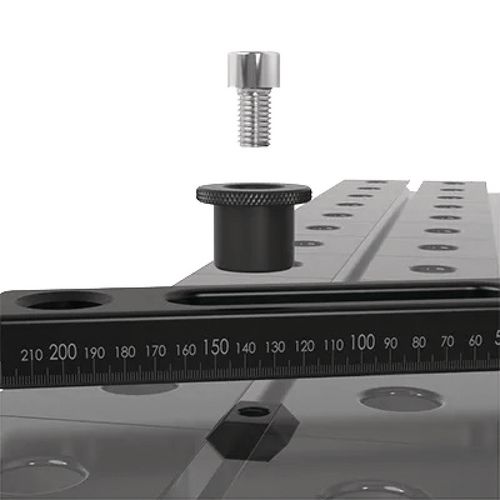

When fixing components, the Hexagon Slot Table offers a wide range of clamping options and optimum flexibility.

Flexible clamping with plenty of possibilities

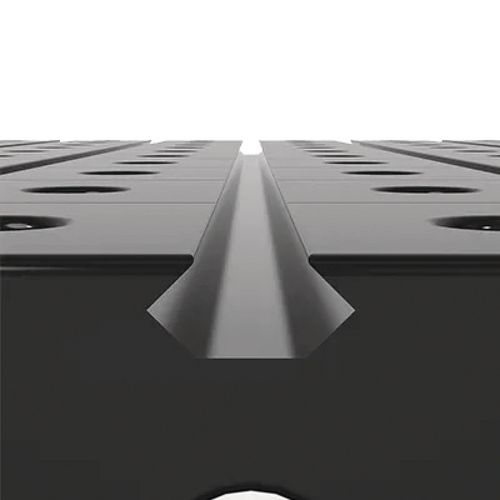

The additional slots provide continuous linear clamping positions across the complete table surface.

Compatible

All System 28 accessories are compatible with the hexagon slot table. Including the sub table boxes and drawers below.

Made of hardened tool steel
Plasma nitrided

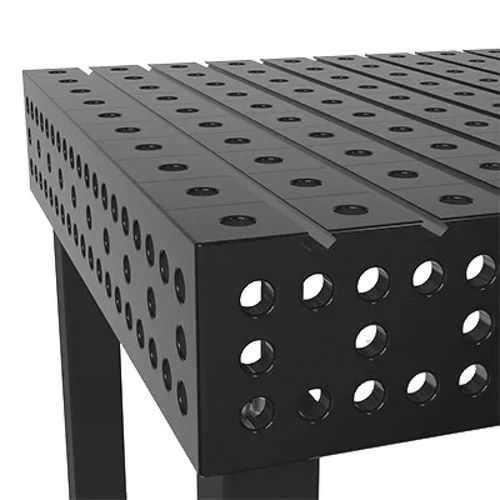

With transverse slots
Borehole 28 mm

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Load capacity approx.	4000 kg
VPE	1

Dimensions and weights
Table height	850 mm
Length approx.	4000 mm
Width/depth approx.	2000 mm
Height approx.	200 mm
Weight approx.	2262 kg

Unit: pc(s).
Packaging unit: 1
