Pulse inert gas welder
CRAFT-MIG 201P Pulse Special offer set
modern MIG welder for professional use
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 1072201SET
Are you interested in this product?
Put a request
Find Trader
Productdetails
Basic Features
Method
- MIG/MAG
- TIG (DC)
- Electrodes
Sheet thicknesses
- from 0.8 mm steel and stainless steel (MAG)
- from 1.0 mm for aluminum (MIG)
Base materials
- Unalloyed and low-alloy materials (S235JR)
- High-alloy materials (stainless steel)
- Aluminum alloy
- Filler wire
Typical applications
- Locksmith, mechanical engineering, assembly
- Car workshop, plumber
- Maintenance, repair
Description
- Pulse function: Significantly less rework due to low-spatter welding
- Best welding results due to safe ignition and stable arc
- Synergy function: By preselecting wire Ø, material and gas, automatic calculation of voltage and wire feed

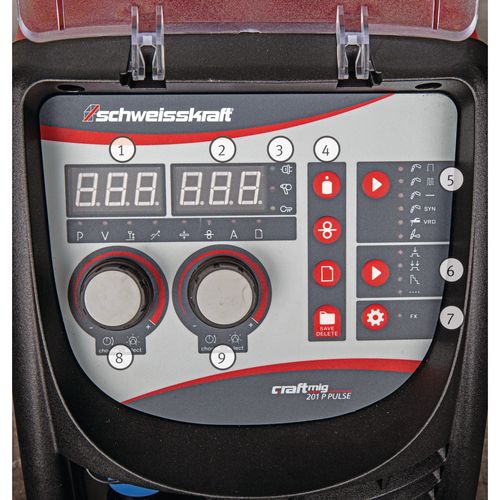

- Accurate setting of welding parameters via digital display with job memory
- Fewer faults therefore higher quality
- The quiet running fans dissipate heat well from the units and result in a high duty cycle
- Arc-Force control: Due to the internal monitoring of welding current and voltage, short circuits are resolved quickly and safely. This stabilises the arc and the electrode can be processed without any problems
- Less welding dust
- Filler wires can be easily welded by simply reversing the polarity
- Suitable for operation on a power generator
- Large range of functions: MIG/MAG (Pulse, Dual Pulse, Synergic, Manual), TIG Lift Arc, E-Hand
- CRAFT-MIG 201P Pulse equipped with PFC (power factor correction), allows best use also on cable drums
| Cooling | |
|---|---|
| Cooling type | AF |
| Dimensions and weights | |
|---|---|
| Length approx. | 580 mm |
| Width/depth approx. | 230 mm |
| Height approx. | 400 mm |
| Weight approx. | 25 kg |
| Duty cycle | |
|---|---|
| Duty cycle at Imax. 40°C | 40 % |
| Current at 60% DC 40°C | 165 A |
| Current at 100% DC 40°C | 130 A |
| Electrical Data | |
|---|---|
| Supply voltage | 110/230 V |
| Mains frequency | 50/60 Hz |
| Power consumption | |
|---|---|
| Efficiency | 82.22 % |
| Setting range | |
|---|---|
| MIG/MAG | 20 – 200 A |
| TIG DC | 10 - 200 A |
| Electrode | 10 - 200 A |
| Standards and certifications | |
|---|---|
| Standard | EN 60 974-1; -10 |
| EMC class | A |
| Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
| Marking | CE |
| Wire feed | |
|---|---|
| Wire feet unit | 4 Rollers |
| Speed | 1,5 – 24 m/min |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

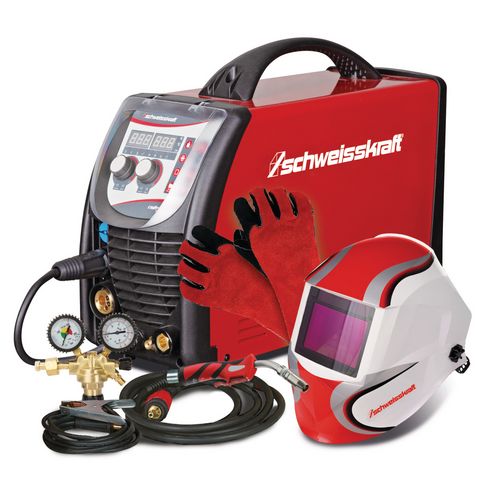

- Welding torch MB 25, 3 m
- Gas hose 12x6 mm, 4 m
- Pressure reducer Argon/CO2, large
- Feed rollers Ø 0.8 – 1.0 steel
- Welding helmet VarioProtect XXL-W
- Welding glove Basic size L / size 9
