    Brandimage to Product EASY-TIG 201 AC/DC PULSE

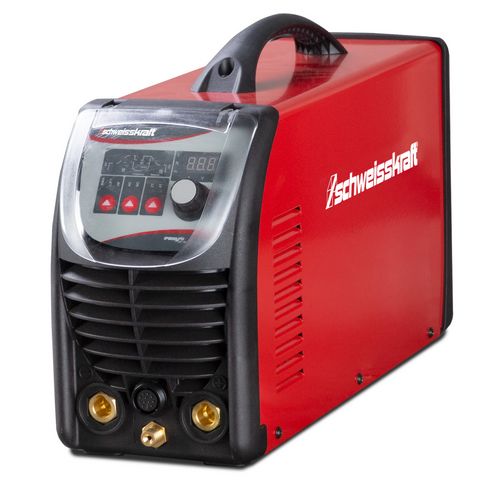

    Portable TIG AC/DC Inverter

    EASY-TIG 201 AC/DC PULSE

    For workshop and mobile use

    1.289,00 EUR excl. Tax / pc(s).
    1.533,91 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheitsdatenblatt 2

    Safetydatasheet 2

    Art.-No. 1074021

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    Basic Features


    Method

    • TIG
    • Welding electrodes


    Sheet thicknesses

    • TIG from approx. 0.5 mm
    • Electrodes from approx. 2 mm


    Base materials

    • Unalloyed, low-alloyed materials
    • High alloyed materials
    • Stainless steels
    • CrNi steels ferritic / austenitic
    • Duplex steels
    • Nickel-based materials
    • Copper materials
    • Aluminium


    Typical applications

    • Repair
    • Industrial plant and pipeline construction
    • Construction site and installation


    Description

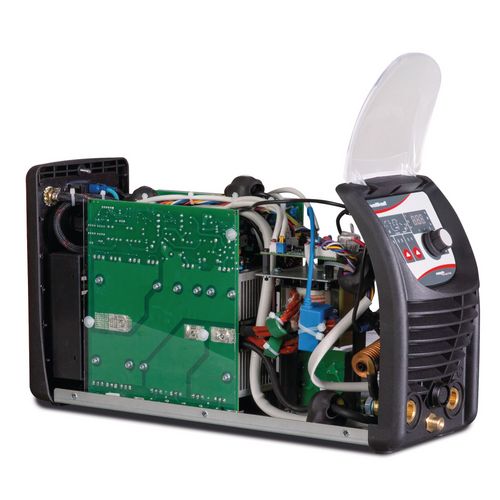

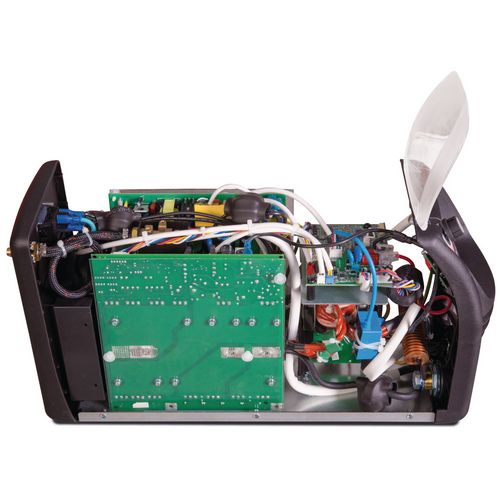

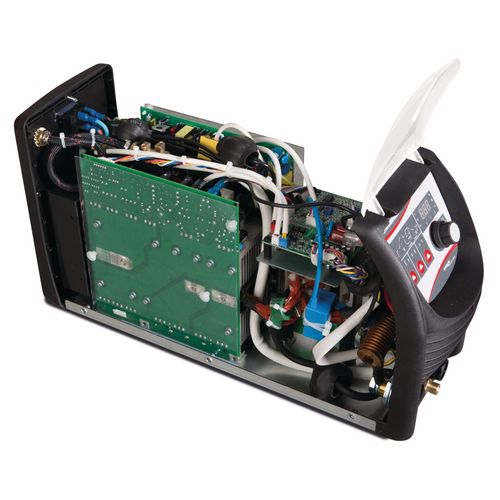

    • All devices are built in modern inverter technology
    • Ideally suited for assembly work (on the ladder, on the scaffolding, ...) and, with protection class IP 21 S, generally also for outdoor work

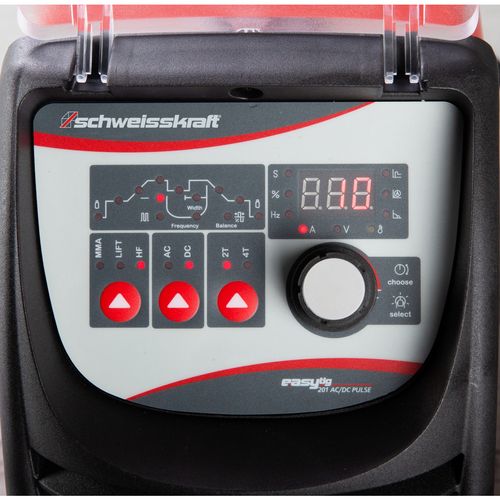

    • Accurate setting of welding parameters via digital display
    • Universally applicable for welding of all common electrode types
    • Suitable for use on the generator for example in company workshops, schools, metal construction, on construction sites or for farmers
    • TIG pulses enable welding with reduced heat input
    • HF high-frequency ignition ignites during TIG welding without touching the workpiece
    • The quietly running fan dissipates the heat well out of the devices, thus achieving a long duty cycle
    • Adjustable welding curve



    Data sheets
    Sicherheitsdatenblatt 2
    Safetydatasheet 2
    Device data
    Pulse rate0.5 – 200 Hz
    Ignitionhigh frequency
    Torch coolinggas
    Dimensions and weights
    Length approx.460 mm
    Width/depth approx.150 mm
    Height approx.280 mm
    Weight approx.9 kg
    Duty cycle
    at Imax. 40°C TIG DC40 %
    at Imax. 40°C electrode30 %
    Current at 100% DC 40°C TIG DC110 A
    Current at 100% DC 40°C electrode95 A
    Electrical Data
    Current consumption TIG AC34 A
    Input current TIG DC29.1 A
    Input current electrode AC40.2 A
    Current consumption electrode DC42.9 A
    Supply voltage230±10% V
    Mains frequency50/60 Hz
    Electrode
    Weldable electrodes1.6 – 4.0 mm
    Power consumption
    TIG DC4 kVA
    Electrode5.9 kVA
    Setting range
    TIG DC10 – 170 A
    Electrode10 – 170 A
    Standards and certifications
    StandardEN 60974-1:2012/EN 60974-10:2014
    EMC classA
    Explanation EMC classThis Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system.
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Gas hose 4m incl. Quick connector
    • Burner TIG 26 4m
    • 3m earth cable 25 mm² with ground terminal
