Portable TIG AC/DC Inverter
EASY-TIG 201 AC / DC PULSE Special offer
For workshop and mobile use
1.296,19
EUR excl. Tax / pc(s).
1.542,47 EUR incl. 19% Tax / pc(s).
1.542,47 EUR incl. 19% Tax / pc(s).
Promotional price *
1.249,00 EUR excl. Tax / pc(s).1.486,31 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 1074021SET
Are you interested in this product?
Put a request
Find Trader
Productdetails
- All devices are built in modern inverter technology
- Ideally suited for assembly work (on the ladder, on the scaffolding, ...) and, with protection class IP 21 S, generally also for outdoor work

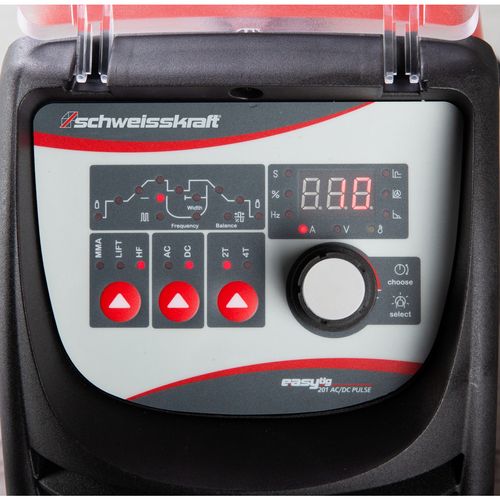

- Accurate setting of welding parameters via digital display
- Universally applicable for welding of all common electrode types
- Suitable for use on the generator for example in company workshops, schools, metal construction, on construction sites or for farmers
- TIG pulses enable welding with reduced heat input
- HF high-frequency ignition ignites during TIG welding without touching the workpiece
- The quietly running fan dissipates the heat well out of the devices, thus achieving a long duty cycle
- Adjustable welding curve
| Device data | |
|---|---|
| Pulse rate | 0.5 – 200 Hz |
| Ignition | high frequency |
| Torch cooling | gas |
| Dimensions and weights | |
|---|---|
| Length approx. | 460 mm |
| Width/depth approx. | 150 mm |
| Height approx. | 280 mm |
| Weight approx. | 9 kg |
| Duty cycle | |
|---|---|
| at Imax. 40°C TIG DC | 40 % |
| at Imax. 40°C electrode | 30 % |
| Current at 100% DC 40°C TIG DC | 110 A |
| Current at 100% DC 40°C electrode | 95 A |
| Electrical Data | |
|---|---|
| Current consumption TIG AC | 34 A |
| Input current TIG DC | 29.1 A |
| Input current electrode AC | 40.2 A |
| Current consumption electrode DC | 42.9 A |
| Supply voltage | 230±10% V |
| Mains frequency | 50/60 Hz |
| Electrode | |
|---|---|
| Weldable electrodes | 1.6 – 4.0 mm |
| Power consumption | |
|---|---|
| TIG DC | 4 kVA |
| Electrode | 5.9 kVA |
| Setting range | |
|---|---|
| TIG DC | 10 – 170 A |
| Electrode | 10 – 170 A |
| Standards and certifications | |
|---|---|
| Standard | EN 60974-1:2012/EN 60974-10:2014 |
| EMC class | A |
| Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

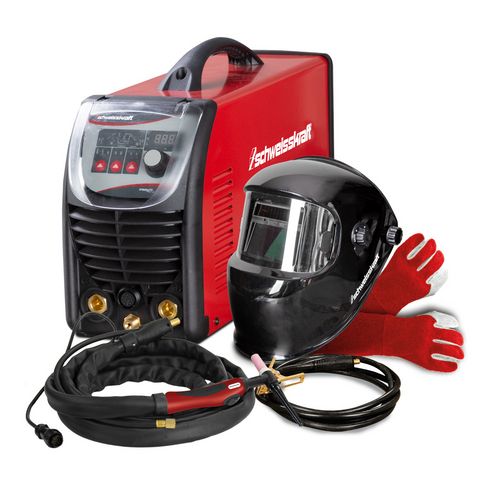

- Gas hose 4 m incl. Quick connector
- Burner TIG 26 4 m
- Welding helmet VarioProtect XL-W TC
- 3 m ground cable 25 mm² with ground terminal
- TIG welding glove Basic size L/size 9
