    Brandimage to Product CRAFT-CUT 83

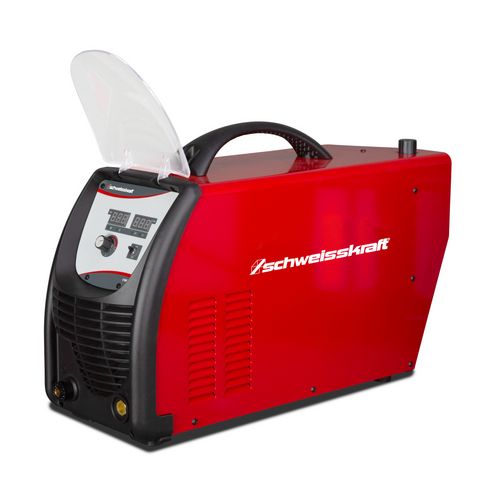

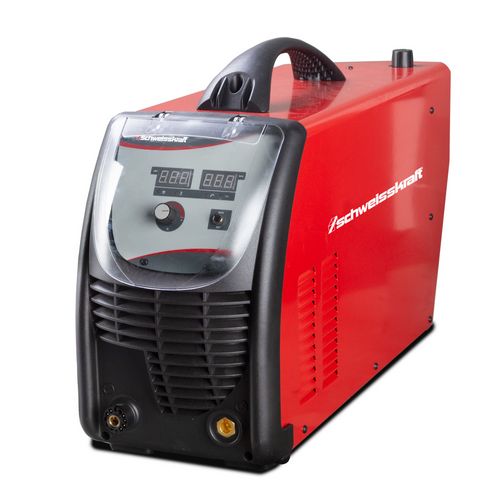

    Plasma cutter

    CRAFT-CUT 83

    Compact, economical and efficient

    2.829,00 EUR excl. Tax / pc(s).
    3.366,51 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 1075084

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    Basic Features


    Method

    • plasma cutting


    Sheet thicknesses

    • to max. 38 mm separating cut


    Base materials

    • all electrically conductive metals, also coated
    • stainless steel
    • Aluminum
    • steel
    • Non-ferrous metals


    Typical applications

    • Plant, container, machine, steel construction
    • chemical plant
    • Repair / Repair
    • Industrial plant and pipeline construction
    • Construction site and installation


    Description

    • Suitable for use on generator e.g. in company workshops, harbors, chemical plants, schools, metalworking, on construction sites, ships or for farmers
    • For stainless steel, aluminum, steel, non-ferrous metals also with painted surface
    • From thin sheets to heavy plates
    • Pilot ARC controller: The set welding current is released only after the arc has been ignited

    CRAFT-CUT 41 P

    • Power Factor Correction PFC enables cable reel operation

    CRAFT-CUT 123 CNC

    • CNC interface for machine connection



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Cutting performance
    Quality cutting steel (ST37) max.32 mm
    Separating cut steel (ST37) max.38 mm
    Quality cutting stainless steel max.32 mm
    Separating cut stainless steel max.38 mm
    Quality cutting aluminium max.22 mm
    Separating cut aluminium max.28 mm
    Device data
    Air consumption160 l/min
    Pressure5 bar
    Dimensions and weights
    Length approx.700 mm
    Width/depth approx.240 mm
    Height approx.445 mm
    Weight approx.28.8 kg
    Duty cycle
    Duty cycle plasma60 %
    Current at 100% DC 40°C Plasma65 A
    Electrical connections
    Input current20 A
    Electrical Data
    Supply voltage400 V
    Mains frequency50/60 Hz
    Setting range
    Adjusting range plasma approx.20 – 80 A
    Standards and certifications
    StandardIEC 60974-1:2012
    EMC classA
    Explanation EMC classThis Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system.
    MarkingCE
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Plasma torch PLUSCUT 85 6m

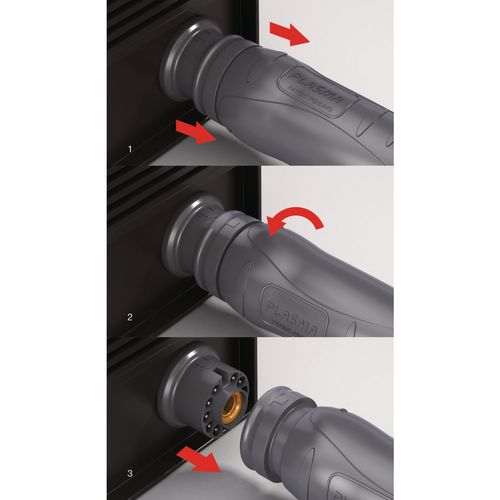

    • Central adapter Trafimector
    • Earth cable 3 m, 12 mm² with earth terminal 300 A
    • Filter pressure regulator with plug nipple
