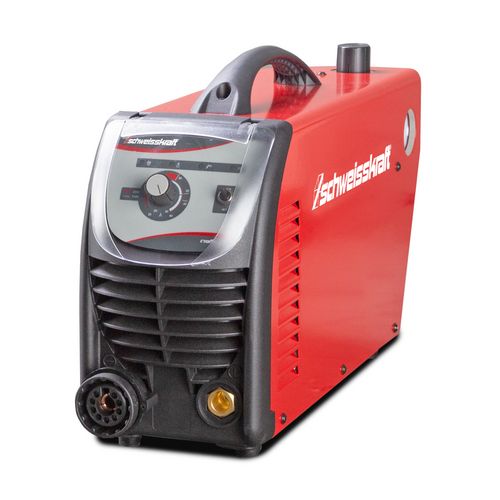

Plasma cutter
CRAFT-CUT 41P
Compact, economical and efficient
1.065,00
EUR excl. Tax / pc(s).
1.267,35 EUR incl. 19% Tax / pc(s).
1.267,35 EUR incl. 19% Tax / pc(s).
Promotional price *
1.029,00 EUR excl. Tax / pc(s).1.224,51 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 1075042
Are you interested in this product?
Put a request
Find Trader
Productdetails
Basic Features
Method
- plasma cutting
Sheet thicknesses
- to max. 20 mm separating cut
Base materials
- all electrically conductive metals, also coated
- stainless steel
- Aluminum
- steel
- Non-ferrous metals
Typical applications
- Plant, container, machine, steel construction
- chemical plant
- Repair / Repair
- Industrial plant and pipeline construction
- Construction site and installation
Description
- Suitable for use on generator e.g. in company workshops, harbors, chemical plants, schools, metalworking, on construction sites, ships or for farmers
- For stainless steel, aluminum, steel, non-ferrous metals also with painted surface
- From thin sheets to heavy plates
- Pilot ARC controller: The set welding current is released only after the arc has been ignited
CRAFT-CUT 41 P
- Power Factor Correction PFC enables cable reel operation
CRAFT-CUT 123 CNC
- CNC interface for machine connection
| Cutting performance | |
|---|---|
| Quality cutting steel (ST37) max. | 15 mm |
| Separating cut steel (ST37) max. | 20 mm |
| Quality cutting stainless steel max. | 15 mm |
| Separating cut stainless steel max. | 20 mm |
| Quality cutting aluminium max. | 14 mm |
| Separating cut aluminium max. | 16 mm |
| Device data | |
|---|---|
| Air consumption | 120 l/min |
| Pressure | 5 bar |
| Dimensions and weights | |
|---|---|
| Length approx. | 510 mm |
| Width/depth approx. | 145 mm |
| Height approx. | 280 mm |
| Weight approx. | 8.1 kg |
| Duty cycle | |
|---|---|
| Duty cycle plasma | 50 % |
| Current at 100% DC 40°C Plasma | 30 A |
| Electrical connections | |
|---|---|
| Input current | 110V:36.5/230V:21.8 A |
| Electrical Data | |
|---|---|
| Supply voltage | 90 - 275 V |
| Mains frequency | 50/60 Hz |
| Setting range | |
|---|---|
| Adjusting range plasma approx. | 40 A |
| Standards and certifications | |
|---|---|
| Standard | EN 60974-1:2012/EN 60974-10:2014 |
| EMC class | A |
| Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
| Marking | CE |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Plasma torch S65 6m</ li>
- Central adapter Standard
- Earth cable 3 m, 6 mm² with earth terminal 300 A
- Filter pressure regulator with plug nipple
