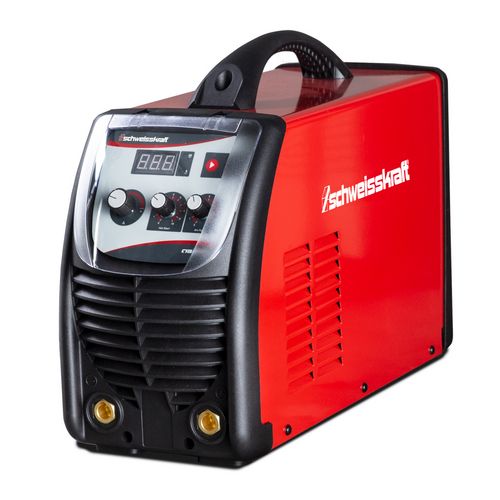

    Brandimage to Product CRAFT-STICK 253

    Electrode inverter

    CRAFT-STICK 253

    400 volt model in standard version with sealed circuit board

    Price upon request

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 1073253

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • All devices are built in modern inverter technology
    • Best suited for assembly work (on ladders, scaffolding, ...) and due to protection class IP 21S generally also for outdoor work
    • Suitable for use on the generator e.g. in operating workshops, ports, chemical plants, schools, metal construction, on construction sites, ships or for farmers
    • Protection against moisture, salt spray and corrosion due to sealed circuit board. Therefore also suitable offshore

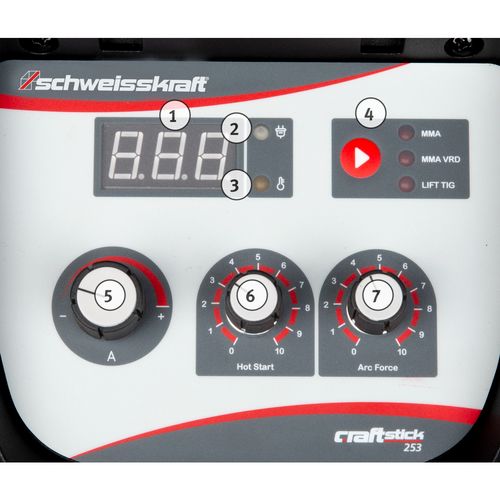

    • Hot Start: By adjustable short-time increase of the welding current the arc ignites safely and is immediately stable
    • Anti-stick: If the electrode accidentally sticks, the welding current is automatically reduced, preventing the electrode from annealing
    • With WG DC LiftArc ignition
    • Arc Force control: Internal monitoring of welding current and voltage quickly and safely resolves short circuits. The adjustable increase of the current stabilises the arc and the electrode can be processed without problems.
    • VRD (Volt Reduction Device): Spannungsabsenkung im Leerlauf



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.495 mm
    Width/depth approx.190 mm
    Height approx.350 mm
    Weight approx.11.8 kg
    Duty cycle
    at Imax. 40°C electrode60 %
    at Imax. 40°C TIG DC60 %
    Current at 100% DC 40°C electrode200 A
    Current at 100% DC 40°C TIG DC200 A
    Electrical connections
    Power consumption in idle mode< 50 W
    Input current electrode17.7 A
    Input current TIG13.1 A
    Total output electrode10 kVA
    Total output TIG7.4 kVA
    Electrical Data
    Supply voltage400±10% V
    Mains frequency50/60 Hz
    Electrode
    Weldable electrodes1,6 - 5,0 mm
    Power consumption
    Electrode8.5 kVA
    TIG DC6.3 kVA
    Efficiency89 %
    Setting range
    Electrode20 – 250 A
    TIG DC20 – 250 A
    Standards and certifications
    StandardEN 60974-1:2012, EN 60974-10:2014
    EMC classA
    Explanation EMC classThis Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system.
    MarkingCE
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • 3 m welding cable 25 mm² with electrode holder 300 A
    • 3 m ground cable 25 mm² with ground terminal 300 A
