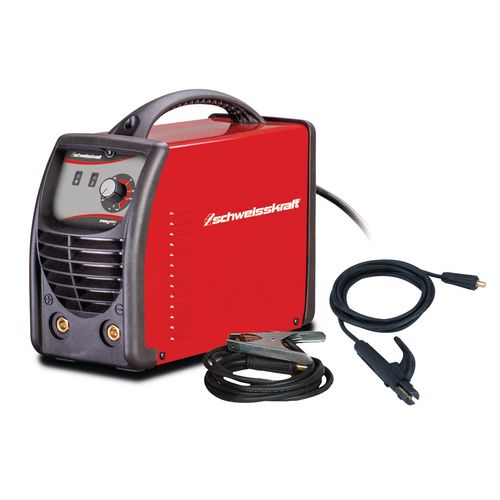

    Brandimage to Product EASY-STICK 141

    Electrode inverter

    EASY-STICK 141

    Standard device in modern inverter technology for 230 V applications

    215,00 EUR excl. Tax / pc(s).
    255,85 EUR incl. 19% Tax / pc(s).
    Promotional price *
    199,00 EUR excl. Tax / pc(s).
    236,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Art.-No. 1073014

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Ideally suited for assembly work (on the ladder, on the scaffolding, ...) and, with protection class IP 21S, generally also for outdoor work
    • Suitable for use on the generator eg in company workshops, schools, metal construction, on construction sites or for farmers
    • Hot Start: By automatically increasing the welding current temporarily, the arc ignites safely and is instantly stable
    • Anti-stick: By accidentally sticking the electrode, the welding current is automatically reduced, thus preventing the electrode from annealing
    • Arc Force Control: Internal monitoring of welding current and voltage eliminates short circuits quickly and safely. This stabilizes the arc and allows the electrode to be easily processed



    Dimensions and weights
    Length approx.320 mm
    Width/depth approx.135 mm
    Height approx.255 mm
    Weight approx.4.3 kg
    Duty cycle
    at Imax. 40°C electrode15 %
    Current at 100% DC 40°C electrode55 A
    Electrical connections
    Input current36.6 A
    Total output8,4 kVA
    Electrical Data
    Supply voltage230 V
    Mains frequency50/60 Hz
    Electrode
    Weldable electrodes1,6 – 3,2 mm
    Power consumption
    Electrode4.5 kVA
    Setting range
    Electrode10 – 140 A
    Standards and certifications
    StandardEN 60974-1:2012, EN 60974-10:2014
    EMC classA
    Explanation EMC classThis Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system.
    MarkingCE
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • 3 m welding cable 16 mm² with electrode holder 300 A
    • 3 m ground cable 16 mm² with ground clamp 300 A
