- All units are constructed using modern inverter technology
- Ideal for installation work (on the ladder, on the scaffolding, ...) and, with protection class IP 21S,, generally also for working outdoors
- Suitable for use on the generator, for example in company workshops, schools, metal construction, on construction sites or for farmers
- Sealed board protects against moisture, salt spray and corrosion. Also suitable for offshore
- units equipped with PFC (power factor correction), VRD (idle voltage reduction)
- TIG DC function = enables easy TIG welding with contact ignition

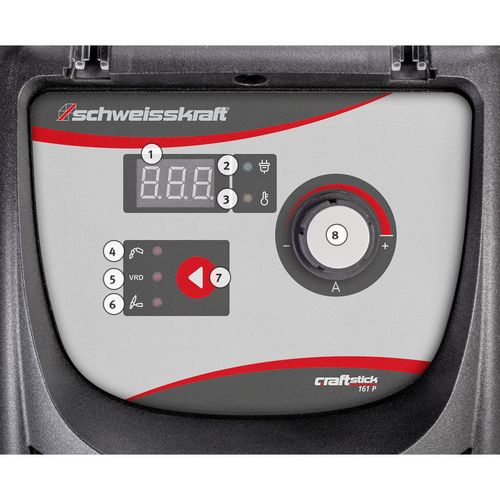

- Precise setting of the welding parameters via digital display
- Universally applicable for welding of all common types of electrodes
- The quietly running fans dissipate the heat well out of the devices and thus achieve a long duty cycle.
- Consistent melt flow is achieved by constant welding current
- At least 30% duty cycle for all devices
- Sealed circuit board with protection against moisture, salt spray, corrosion, therefore also offshore suitable
All CRAFT STICKs have the following features by default:
- Hot Start: By automatically increasing the welding current temporarily, the arc ignites safely and is instantly stable
- Anti-Stick when accidentally sticking the electrode, the welding current is automatically reduced and thus prevents annealing of the electrode
- Arc Force Control: Internal monitoring of welding current and voltage eliminates short circuits quickly and safely, this stabilizes the arc and allows the electrode to be easily processed
Dimensions and weights |
---|
Length approx. | 365 mm |
Width/depth approx. | 150 mm |
Height approx. | 280 mm |
Weight approx. | 6,7 kg |
Duty cycle |
---|
at Imax. 40°C electrode | 30 % |
at Imax. 40°C TIG DC | 30 % |
Current at 100% DC 40°C electrode | 90 A |
Current at 100% DC 40°C TIG DC | 90 A |
Electrical connections |
---|
Input current electrode | 22.1 A |
Input current TIG | 14.7 A |
Total output electrode | 5.1 kVA |
Total output TIG | 3.4 kVA |
Electrical Data |
---|
Supply voltage | 230 V |
Mains frequency | 50/60 Hz |
Electrode |
---|
Weldable electrodes | 1,6 - 4,0 mm |
Power consumption |
---|
Electrode | 5.1 kVA |
TIG DC | 3.4 kVA |
Setting range |
---|
Electrode | 10 - 160 A |
TIG DC | 10 - 160 A |
Standards and certifications |
---|
Standard | EN 60974-1:2012, EN 60974-10:2014 |
EMC class | A |
Explanation EMC class | This Class A welding equipment is not intended for use in residential areas where power is supplied by a public low-voltage power supply system. |
Marking | CE |
Unit: pc(s).
Packaging unit: 1
- 3m welding cable 16mm² with electrode holder
- 3m earth cable 16mm² with earth terminal 200 A
- Transport case
