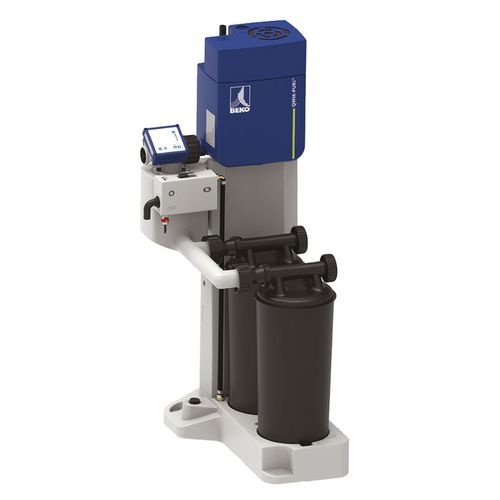

QWIK-PURE 30

Safe. Clean. Modular.

3.319,00 EUR excl. Tax / pc(s).
3.949,61 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 2048017

Are you interested in this product?

Put a request

Find Trader

Productdetails

QWIK-PURE: Condensate is actively pressed through the pre-filter and main filter with light blasts of compressed air; conventional oil-water separators: Condensate seeps through the filter medium due to gravity
Permanent function monitoring
Integrated FRC control unit: reliable display of the remaining capacity of the cartridges and automatic monitoring of when condensate needs to be pushed through with light blasts of compressed air
Integrated monitoring optimally utilizes the cartridges
Remote monitoring possible thanks to network capability
No system overflow due to active operating principle with automatic drainage
Fail-safe mode in the event of power failure and loss of compressed air: independent initiation of measures and triggering of alarms in the event of problems. For safe operation, QWIK-PURE then continues to work like conventional gravity separators.
Collected oils are reliably bound in hermetically sealed cartridges - no contact with contaminants
Simple, clean and ergonomic cartridge changeover
Easy adjustment to changing compressed air and condensate requirements
Designed according to service interval or compressor capacity

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Flow rate	max. 38 l/h
Operating pressure	max. 16 bar
Operating temperature	+5 - +50 °C
Condensate feed	3 x G1/2", external, 1 x G1", external, hose nozzle
Condensate outlet	1 x 23 mm, external, hose nozzle: 1 x 25 mm, external, 1 x 13 mm, external
Max. operating weight	100 kg
Relative humidity of the environment	≤10 - 80 %, without condensation
Media	Compressor condensate, containing oil
Mode of operation	active
VPE	1

Control unit
Operating pressure compressed air min.	3 bar
Operating pressure compressed air max.	15 bar
Compressed air purity class	2:4:2
Operating voltage	90…264 VAC / 24VDC
Frequency range	50 – 60 Hz

Dimensions and weights
Length approx.	744 mm
Width/depth approx.	790 mm
Height approx.	1482 mm
Weight approx.	31 kg

Unit: pc(s).
Packaging unit: 1
