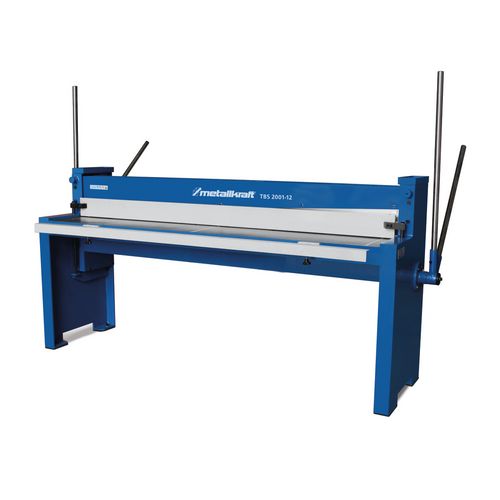

    Manual sheet metal shears

    TBS 2001-12

    Suitable for cutting steel, aluminum and copper

    2.850,00 EUR excl. Tax / pc(s).
    3.391,50 EUR incl. 19% Tax / pc(s).
    Promotional price *
    2.599,00 EUR excl. Tax / pc(s).
    3.092,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3746020

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • High quality steel knives with a hardness of HRC55-60
    • Equipped with two control handles

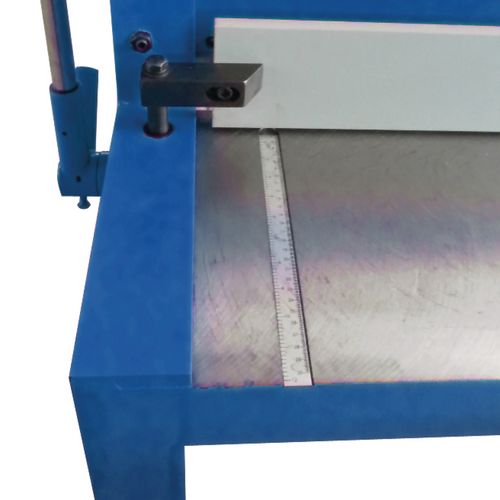

    • Front bearing surface with scale

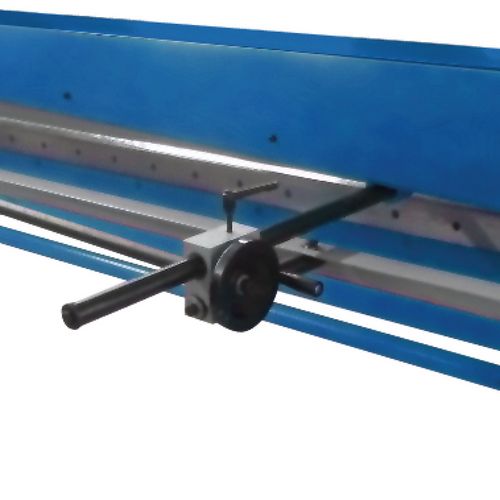

    • Up to 500 mm adjustable backgauge



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Working width2000 mm
    Cutting performance material tensile strength 400 N/mm²1.25 mm
    Cutting performance material tensile strength 700 N/mm²0.62 mm
    Explanation to cutting performancesValues for stainless steel (700 N/mm²) can only be reached with optional blade set
    Rear stop adjustment range up to500 mm
    Rear stop width485 mm
    VPE1
    Dimensions and weights
    Table height684 mm
    Length approx.2450 mm
    Width/depth approx.1100 mm
    Height approx.1050 mm
    Weight approx.511 kg
    Unit: pc(s).
    Packaging unit: 1

    • back gauge
    • Two operating handles
