| Working width | 1250 mm |
| Cutting performance material tensile strength 400 N/mm² | 4 mm |
| Cutting performance material tensile strength 700 N/mm² | 2 |
| Explanation to cutting performances | Values for stainless steel (700 N/mm²) can only be reached with optional blade set |
| Number of sheet support arms | 2 St |
| Rear stop adjustment range up to | 630 mm |
| Cutting angle | 2,4 ° |
| Max. strokes for full cutting length | 30 /min |
| VPE | 1 |

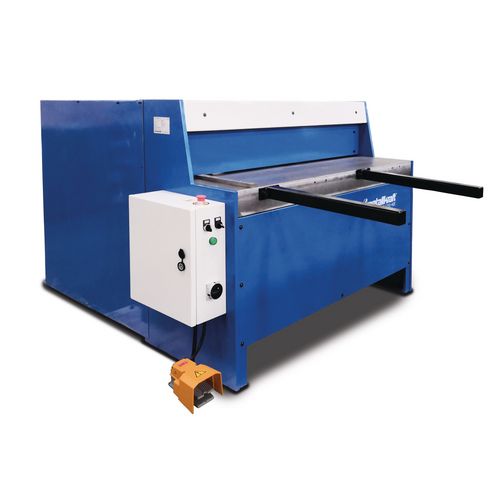

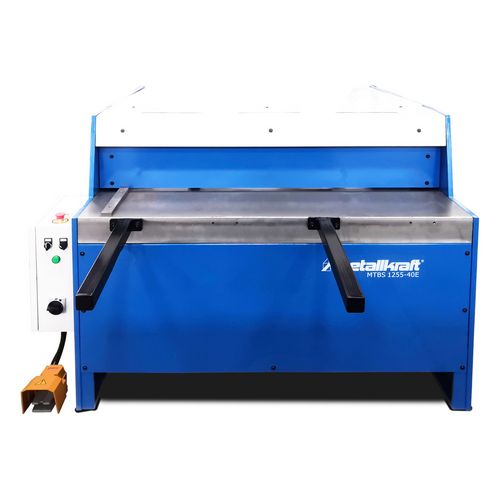

Motorized sheet metal shears
MTBS 1255-40 E
Suitable for cutting metals and other materials
9.290,00
EUR excl. Tax / pc(s).
11.055,10 EUR incl. 19% Tax / pc(s).
11.055,10 EUR incl. 19% Tax / pc(s).
Promotional price *
8.999,00 EUR excl. Tax / pc(s).10.708,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 3757014
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Suitable for cutting steel and non-ferrous metals
- Heavy, stress-free welded steel construction
- High quality knife
- Sheet metal support arms for large workpieces
- Cut line illumination and long holes in the upper cover plate for an optimal view of the cutting edge for cutting on scratches

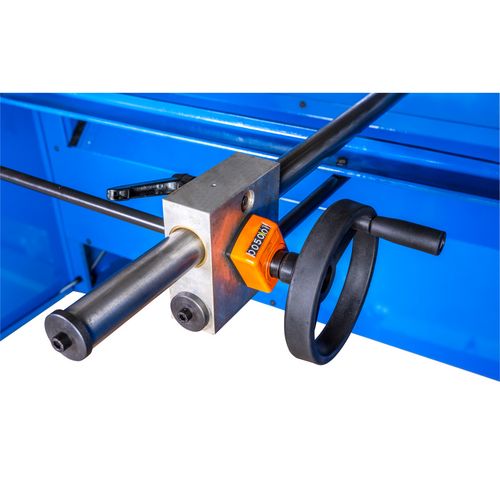

- Manual back gauge 630 mm with millimeter precision adjustment

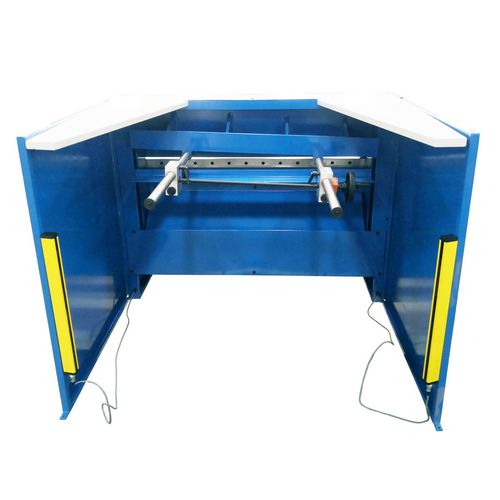

- Photocell for the backgauge area
- The foot control leaves both hands free for the material supply
| Dimensions and weights | |
|---|---|
| Length approx. | 1712 mm |
| Width/depth approx. | 1605 mm |
| Height approx. | 1190 mm |
| Weight approx. | 1185 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 4,0 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Sheet support arms
- side stop
- Manual backgauge
- foot operation
| Number of sheet support arms | 2 St |
