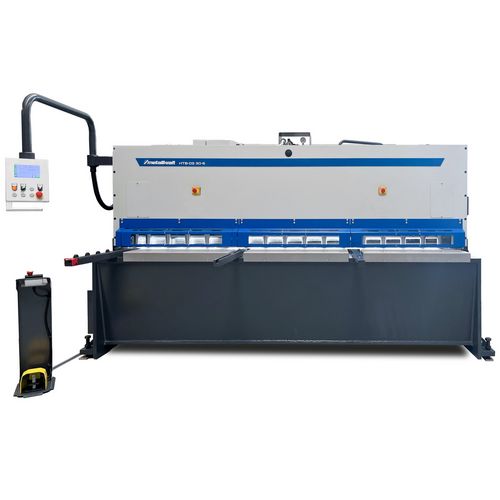

Hydraulic swing cut plate shear
HTB DS 3016
with motorized kerf adjustment and Cybelec CybTouch 8 touchscreen NC control system
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4502316
Are you interested in this product?
Put a request
Find Trader
Productdetails
Standard design:
- Very heavy and robust welded construction
- Cybelec CybTouch 8 touchscreen NC control unit
- Automatic cutting gap adjustment depending on material type and thickness
- Motorized back gauge 1000mm with recirculating ball screws and solid guides
- Backgauge beam can be folded up for cuts with excess length, greater than 1000mm
- 1000 mm side stop with scale, T-slot and tilting cam
- Two front support arms 1000mm for simplified handling of large panels
- Stainless steel table supports fitted with transfer balls for easier handling of heavy and large sheets
- Front finger guard with viewing panels
- First meter of the finger guard can be opened to make it easier to insert remnants
- LED cutting line lighting with shadow gap via adjustable wire
- Rear area protection via safety light curtain
- Double-acting cylinders for cutting and return stroke of the blade bar
- High-quality blades, suitable for cutting stainless steel
- Rotating blades, upper blade with two cutting edges and lower blade with four cutting edges
- Hydraulic and electronic components from renowned manufacturers
Special accessories:
- Pneumatic sheet support for the rear area
- Finger protection by means of light curtain
- Extension of the side stop or front supports
- Removable mitre fence 0-180°
- Laser cutting line indicator
- Spare blade
| Working width | 3120 mm |
| Cutting performance material tensile strength 400 N/mm² | 16 mm |
| Cutting performance material tensile strength 600 N/mm² | 10 mm |
| Cuts per minute | 12 |
| Number of hold-down units | 15 St |
| Number of sheet support arms | 3 St |
| Rear stop adjustment range up to | 1000 mm |
| Rear stop speed | 200 mm/s |
| Side stop length | 1000 mm |
| Cutting angle | 2.5 ° |
| Max. strokes for full cutting length | 12 /min |
| Oil tank capacity | 400 l |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Reach | 150 mm |
| Table length | 3420 mm |
| Table depth | 575 mm |
| Table height | 840 mm |
| Machine body depth | 2150 mm |
| Length approx. | 3875 mm |
| Width/depth approx. | 3200 mm |
| Height approx. | 2170 mm |
| Weight approx. | 16120 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 30 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Cutting kerf adjustment | motorized, via CNC control |
| Cutting angle adjustment | hydraulic, via CNC control |
| Cutting line lighting and visual slots | Yes |
| Lateral stop | 1000 mm, with scale and groove |
| Rear stop | motorized with ball screw |
| Table support made of stainless steel | with transfer balls |
