| Number of sheet support arms | 2 St |
| Rear stop adjustment range up to | 1000 mm |
| Rear stop speed | 200 mm/s |
| Side stop length | 1000 mm |

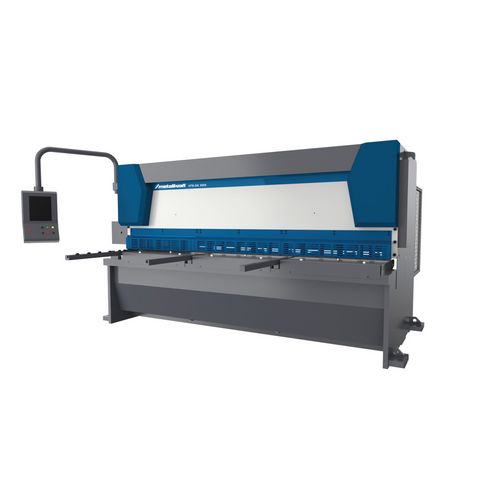

Hydraulic gate guided plate shearing machine
HTB DK
with automatic cutting angle and kerf gap adjustment and touchscreen NC control Cybelec CybTouch 8".
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Price | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Working width (mm) | Cutting performance material tensile strength 400 N/mm² (mm) | Cutting performance material tensile strength 600 N/mm² (mm) | Number of hold-down units (St) | Cutting angle (°) | Max. strokes for full cutting length (/min) | Oil tank capacity (l) | VPE | Table length (mm) | Table depth (mm) | Table height (mm) | Machine body depth (mm) | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Drive motor output (kW) | EUR excl. Tax | EUR incl. 19% Tax | |
| HTB DK 3006 | 4510306 | 3035 | 6 | 4 | 16 | 0.5 – 3 | 29 – 12 | 200 | 1 | 3280 | 505 | 800 | 1665 | 3775 | 2955 | 2260 | 8800 | 11 | Price upon request | - | |
| HTB DK 3010 | 4510310 | 3040 | 10 | 6 | 17 | 0.5 – 3 | 20 – 11 | 300 | 1 | 3340 | 505 | 800 | 1665 | 3850 | 2960 | 2160 | 10700 | 22 | Price upon request | - | |
| HTB DK 3013 | 4510313 | 3040 | 13 | 8 | 16 | 0.5 – 3 | 17 – 8 | 400 | 1 | 3340 | 590 | 800 | 2020 | 3850 | 3270 | 2260 | 13500 | 30 | Price upon request | - | |
| HTB DK 3016 | 4510316 | 3060 | 16 | 10 | 16 | 0.5 – 3 | 13 – 6 | 600 | 1 | 3360 | 595 | 925 | 2025 | 3870 | 3315 | 2280 | 15800 | 30 | Price upon request | - | |
| HTB DK 3020 | 4510320 | 3060 | 20 | 13 | 16 | 0.5 – 3 | 12 – 5 | 750 | 1 | 3400 | 595 | 820 | 2105 | 3910 | 3395 | 2640 | 20000 | 37 | Price upon request | - | |
| HTB DK 4006 | 4510406 | 4065 | 6 | 4 | 23 | 0.5 – 3 | 23 – 9 | 200 | 1 | 4320 | 505 | 820 | 1665 | 4830 | 2955 | 2130 | 11500 | 11 | Price upon request | - | |
| HTB DK 4013 | 4510413 | 4065 | 13 | 8 | 21 | 0.5 – 3 | 13 – 6 | 400 | 1 | 4340 | 590 | 900 | 2220 | 4850 | 3160 | 2360 | 18500 | 30 | Price upon request | - | |
| HTB DK 4016 | 4510416 | 4065 | 16 | 10 | 26 | 0.5 – 3 | 13 – 6 | 400 | 1 | 4360 | 600 | 900 | 2250 | 4930 | 3300 | 2200 | 21000 | 30 | Price upon request | - | |
| HTB DK 4020 | 4510420 | 4065 | 20 | 13 | 26 | 0.5 – 3 | 12 – 5 | 750 | 1 | 4400 | 595 | 820 | 2105 | 4950 | 3390 | 2570 | 25000 | 37 | Price upon request | - | |
| HTB DK 6006 | 4510606 | 6125 | 6 | 4 | 31 | 0.5 – 2.5 | 14 – 6 | 475 | 1 | 6400 | 525 | 880 | 2085 | 6910 | 3610 | 2780 | 27500 | 11 | Price upon request | - | |
| HTB DK 6013 | 4510613 | 6125 | 13 | 8 | 31 | 0.5 – 2.5 | 11 – 5 | 400 | 1 | 6460 | 606 | 900 | 2200 | 7090 | 3185 | 2665 | 35500 | 30 | Price upon request | - | |
| HTB DK 6016 | 4510616 | 6160 | 16 | 10 | 31 | 0.5 – 2.5 | 10 – 5 | 750 | 1 | 6480 | 610 | 900 | 2250 | 7200 | 3700 | 2780 | 49500 | 45 | Price upon request | - | |
| HTB DK 6020 | 4510620 | 6125 | 20 | 13 | 31 | 0.5 – 2.5 | 10 – 5 | 750 | 1 | 6500 | 610 | 900 | 2250 | 7200 | 3700 | 2780 | 55000 | 45 | Price upon request | - | |
Select Attributes
General
- Working width
- Cutting performance material tensile strength 400 N/mm²
- Cutting performance material tensile strength 600 N/mm²
- Number of hold-down units
- Cutting angle
- Max. strokes for full cutting length
- Oil tank capacity
- VPE
Dimensions and weights
- Table length
- Table depth
- Table height
- Machine body depth
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Electrical Data
- Drive motor output
Price
- excl. Tax
- incl. 19% Tax
Productdetails
Standard design:
- Very heavy and robust welded construction
- Cybelec CybTouch8 touchscreen NC control unit
- Automatic cutting angle and kerf adjustment depending on material type and thickness
- Cutting angle adjustment enables higher cycle rates and better cutting quality
- Motorized backgauge 1000mm with ball screws and solid guides
- 1000 mm side stop with scale, T-slot and tilting cam
- Two front support arms 1000mm for simplified handling of large sheets
- Stainless steel table supports fitted with transfer balls for easier handling of heavy and large boards
- Front finger guard with viewing panels
- First meter of the finger guard can be opened to make it easier to insert remnants
- LED cutting line lighting with shadow gap via adjustable wire
- Rear area protection via safety light curtain
- Double-acting cylinders for cutting and return stroke of the blade bar
- High-quality blades, suitable for cutting stainless steel
- Rotating blades, upper blade with two cutting edges and lower blade with four cutting edges
- Hydraulic and electronic components from renowned manufacturers
Special accessories:
- Pneumatic sheet support for the rear area
- Finger protection by means of light curtain
- Extension of the side stop or front supports
- Removable mitre fence 0-180°
- Laser cutting line indicator
- Spare blade
| Dimensions and weights | |
|---|---|
| Reach | 350 mm |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
