| Number of sheet support arms | 3 St |
| Rear stop adjustment range up to | 1000 mm |
| Rear stop speed | 200 mm/s |
| Side stop length | 1000 mm |
Hydraulic swing cut plate shear
HTB DS
with motorized kerf adjustment and Cybelec CybTouch 8 touchscreen NC control system
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Price | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Working width (mm) | Cutting performance material tensile strength 400 N/mm² (mm) | Cutting performance material tensile strength 600 N/mm² (mm) | Cuts per minute | Number of hold-down units (St) | Cutting angle (°) | Max. strokes for full cutting length (/min) | Oil tank capacity (l) | VPE | Table length (mm) | Table depth (mm) | Table height (mm) | Machine body depth (mm) | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Drive motor output (kW) | EUR excl. Tax | EUR incl. 19% Tax | |
| HTB DS 3006 | 4502306 | 3120 | 6 | 4 | 18 | 15 | 1.39 | 18 | 200 | 1 | 3360 | 500 | 850 | 1900 | 3840 | 2745 | 1700 | 8000 | 11 | Price upon request | - | |
| HTB DS 3010 | 4502310 | 3120 | 10 | 6 | 12 | 15 | 2 | 12 | 200 | 1 | 3380 | 575 | 830 | 2050 | 3850 | 3060 | 1850 | 12500 | 22 | Price upon request | - | |
| HTB DS 3013 | 4502313 | 3120 | 13 | 8 | 12 | 15 | 2.5 | 12 | 400 | 1 | 3400 | 575 | 840 | 2050 | 3850 | 3160 | 2000 | 14000 | 30 | Price upon request | - | |
| HTB DS 3016 | 4502316 | 3120 | 16 | 10 | 12 | 15 | 2.5 | 12 | 400 | 1 | 3420 | 575 | 840 | 2150 | 3875 | 3200 | 2170 | 16120 | 30 | Price upon request | - | |
| HTB DS 4006 | 4502406 | 4160 | 6 | 4 | 14 | 19 | 1.33 | 14 | 240 | 1 | 4410 | 500 | 850 | 1900 | 4890 | 2750 | 1820 | 10400 | 11 | Price upon request | - | |
| HTB DS 4013 | 4502413 | 4160 | 13 | 8 | 8 | 19 | 2 | 8 | 400 | 1 | 4450 | 575 | 840 | 2050 | 4930 | 3160 | 2100 | 16850 | 30 | Price upon request | - | |
Select Attributes
General
- Working width
- Cutting performance material tensile strength 400 N/mm²
- Cutting performance material tensile strength 600 N/mm²
- Cuts per minute
- Number of hold-down units
- Cutting angle
- Max. strokes for full cutting length
- Oil tank capacity
- VPE
Dimensions and weights
- Table length
- Table depth
- Table height
- Machine body depth
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Electrical Data
- Drive motor output
Price
- excl. Tax
- incl. 19% Tax
Productdetails
Standard design:
- Very heavy and robust welded construction

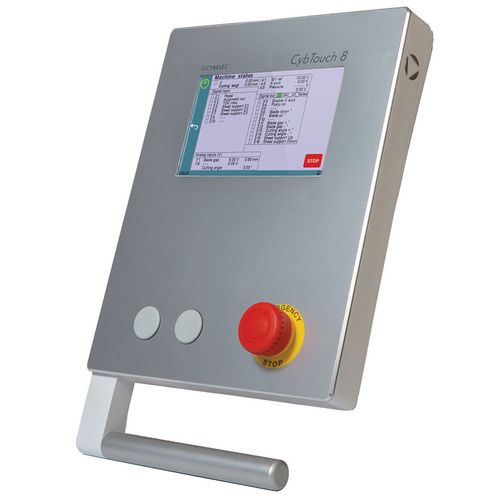

- Cybelec CybTouch 8 touchscreen NC control unit
- Automatic cutting gap adjustment depending on material type and thickness
- Motorized back gauge 1000mm with recirculating ball screws and solid guides
- Backgauge beam can be folded up for cuts with excess length, greater than 1000mm
- 1000 mm side stop with scale, T-slot and tilting cam
- Two front support arms 1000mm for simplified handling of large panels
- Stainless steel table supports fitted with transfer balls for easier handling of heavy and large sheets
- Front finger guard with viewing panels
- First meter of the finger guard can be opened to make it easier to insert remnants
- LED cutting line lighting with shadow gap via adjustable wire
- Rear area protection via safety light curtain
- Double-acting cylinders for the cut and return stroke of the blade bar
- High-quality blades, suitable for cutting stainless steel
- Rotating blades, upper blade with two cutting edges and lower blade with four cutting edges
- Hydraulic and electronic components from renowned manufacturers
Special accessories:
- Pneumatic sheet support for the rear area
- Finger protection by means of light curtain
- Extension of the side stop or front supports
- Removable mitre fence 0-180°
- Laser cutting line indicator
- Spare blade
| Dimensions and weights | |
|---|---|
| Reach | 150 mm |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
