| Cutting performance material tensile strength 400 N/mm² | 6 mm |
| Cutting performance material tensile strength 600 N/mm² | 4 mm |
| Cuts per minute | 18 |
| Rear stop adjustment range up to | 1000 mm |
| Rear stop speed | 200 mm/s |
| Side stop length | 1000 mm |
| Cutting angle | 1.39 ° |
| Max. strokes for full cutting length | 18 /min |

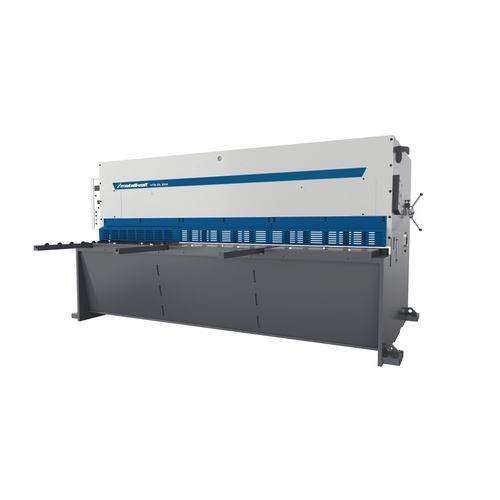

Hydraulic swing cut sheet metal shears
HTB DE
with cost-effective basic equipment
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Price | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Working width (mm) | Number of hold-down units (St) | Number of sheet support arms (St) | Oil tank capacity (l) | VPE | Table length (mm) | Table depth (mm) | Table height (mm) | Machine body depth (mm) | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | EUR excl. Tax | EUR incl. 19% Tax | |
| HTB DE 3006 | 4501306 | 3080 | 17 | 3 | 200 | 1 | 3360 | 470 | 710 | 1450 | 3840 | 2745 | 1700 | 6500 | Price upon request | - | |
| HTB DE 2006 | 4502206 | 2096 | 11 | 2 | 190 | 1 | 2320 | 480 | 720 | 1620 | 2840 | 3000 | 1850 | 5250 | Price upon request | - | |
Select Attributes
General
- Working width
- Number of hold-down units
- Number of sheet support arms
- Oil tank capacity
- VPE
Dimensions and weights
- Table length
- Table depth
- Table height
- Machine body depth
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Price
- excl. Tax
- incl. 19% Tax
Productdetails
Standard design:
- Heavy and robust welded construction
- NC control Nuova Maper HT071
- Manual, central cutting gap adjustment via handwheel and scale
- Motorized backgauge 1000mm with recirculating ball screws and solid guides
- Backgauge beam can be folded away manually for cutting sheets larger than 1000 mm
- 1000 mm side stop with scale, T-slot and tilting cam
- Two front support arms 1000 mm for simplified handling of large sheets
- Table supports with transfer balls for easier handling of heavy and large sheets
- Grid as front intervention protection
- First meter of the finger guard can be folded up to make it easier to insert offcuts
- LED cutting line lighting with shadow gap via adjustable wire
- Rear guard via light curtain
- Single-acting cylinder for cutting, return stroke by means of spring force
- High-quality blades, suitable for cutting stainless steel
- Rotating blades, upper blade with two cutting edges and lower blade with four cutting edges
- Hydraulic and electronic components from renowned manufacturers
Special accessories:
- Cybelec CybTouch 8 touchscreen NC control unit
- Motorized cutting gap adjustment
- Finger guard with light curtain
- Finger protection with viewing panels
- Stainless steel support tables
- Extension of the side stop or the front supports
- Removable mitre fence 0-180°
- Laser cutting line indicator
- Spare blade
| Dimensions and weights | |
|---|---|
| Reach | 150 mm |
| Electrical Data | |
|---|---|
| Drive motor output | 11 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
