| Explanation to cutting performances | Values for stainless steel (700 N/mm²) can only be reached with optional blade set |
| Rear stop adjustment range up to | 630 mm |
| Max. strokes for full cutting length | 30 /min |

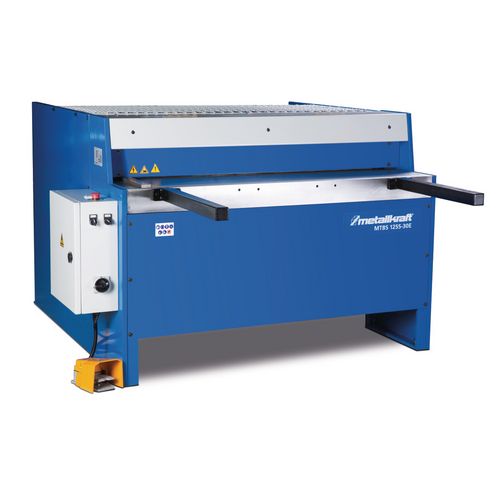

Motorized sheet metal shears
MTBS E
Suitable for cutting metals and other materials
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Price | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Working width (mm) | Cutting performance material tensile strength 400 N/mm² (mm) | Cutting performance material tensile strength 700 N/mm² (mm) | Number of sheet support arms (St) | Cutting angle (°) | VPE | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Drive motor output (kW) | EUR excl. Tax | EUR incl. 19% Tax | |
| MTBS 1255-30 E | 3757013 | 1250 | 3 | 1.5 | 2 | 2.0 | 1 | 1682 | 1477 | 1100 | 850 | 3,0 | Price upon request | - | |
| MTBS 1255-40 E | 3757014 | 1250 | 4 | 2 | 2 | 2,4 | 1 | 1712 | 1605 | 1190 | 1185 | 4,0 | Price upon request | - | |
| MTBS 2055-30 E | 3757023 | 2050 | 3 | 1.5 | 3 | 2.0 | 1 | 2495 | 1610 | 1190 | 1520 | 4,0 | Price upon request | - | |
Select Attributes
General
- Working width
- Cutting performance material tensile strength 400 N/mm²
- Cutting performance material tensile strength 700 N/mm²
- Number of sheet support arms
- Cutting angle
- VPE
Dimensions and weights
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Electrical Data
- Drive motor output
Price
- excl. Tax
- incl. 19% Tax
Productdetails
- Suitable for cutting steel and non-ferrous metals
- Heavy, stress-free welded steel construction
- High quality knife
- Sheet metal support arms for large workpieces
- Cut line illumination and long holes in the upper cover plate for an optimal view of the cutting edge for cutting on scratches

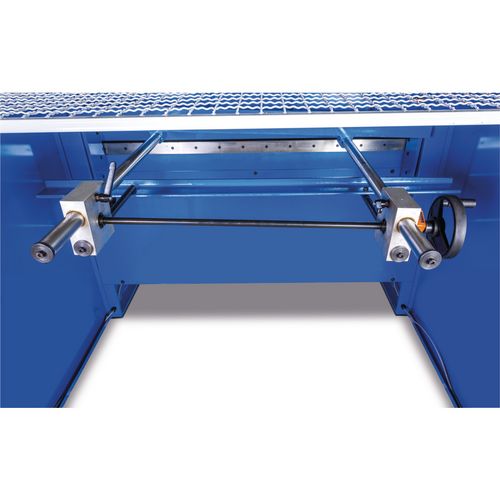

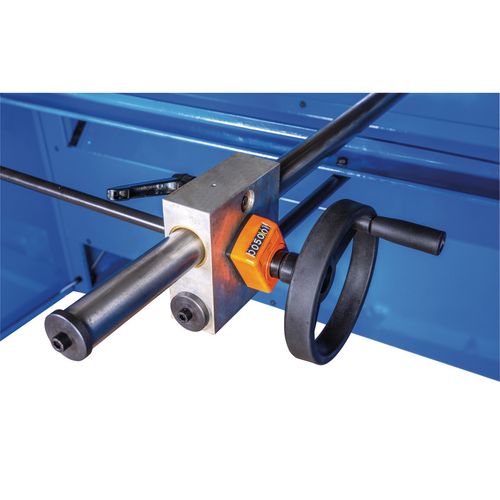

- Manual back gauge 630 mm with millimeter precision adjustment
- Photocell for the backgauge area
- The foot control leaves both hands free for the material supply
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
