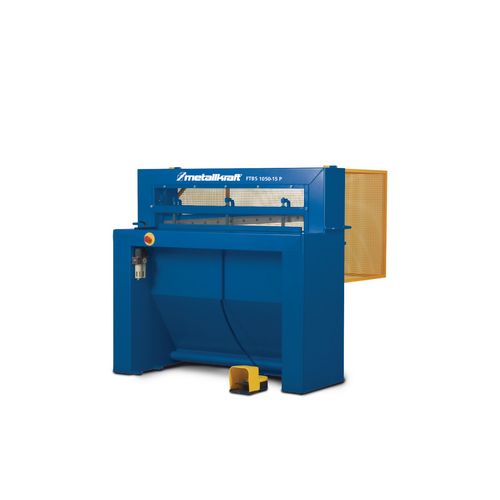

Pneumatic sheet metal shears

FTBS P

With foot control, universally applicable in industry and craft

Price upon request

Prices are recommended retail prices. Retailer prices may vary.

Are you interested in this product?

Put a request

Find Trader

Variations

		General					Dimensions and weights		Price
Title	Art.-No.	Working width (mm)	Cutting performance material tensile strength 400 N/mm² (mm)	Max. strokes for full cutting length (/min)	Air consumption per cycle (l)	VPE	Length approx. (mm)	Weight approx. (kg)	EUR excl. Tax	EUR incl. 19% Tax

		General					Dimensions and weights		Price
Title	Art.-No.	Working width (mm)	Cutting performance material tensile strength 400 N/mm² (mm)	Max. strokes for full cutting length (/min)	Air consumption per cycle (l)	VPE	Length approx. (mm)	Weight approx. (kg)	EUR excl. Tax	EUR incl. 19% Tax
FTBS 1050-15 P	3754015	1030	1:50	22	22	1	1490	270	Price upon request	-
FTBS 1050-20 P	3754020	1030	2.00	15	34	1	1490	280	Price upon request	-
FTBS 1300-15 P	3755015	1350	1:50	21	28	1	1790	300	Price upon request	-
FTBS 1300-20 P	3755020	1330	2.00	14	43	1	1790	310	Price upon request	-


FTBS 1050-15 P	3754015
FTBS 1050-20 P	3754020
FTBS 1300-15 P	3755015
FTBS 1300-20 P	3755020

Select Attributes

General

Working width
Cutting performance material tensile strength 400 N/mm²
Max. strokes for full cutting length
Air consumption per cycle
VPE

Dimensions and weights

Length approx.
Weight approx.

Price

excl. Tax
incl. 19% Tax

Productdetails

P version with two pneumatic auxiliary cylinders and foot switch
Sturdy and robust welded construction
Suitable for cutting steel and non-ferrous metals
Foot operation leaves both hands free for material feed
Large viewing window made of Plexiglas
High-quality steel blade
Baffle guide
Simple adjustment of the cutting blade via eight screws
Angle-adjustable side stop with millimeter scale
Maximum distance from finger guard to work table is 5 mm, ensuring maximum safety
Cutting line lighting as standard

Rear stop adjustment range up to	550 mm
Side stop length	200 mm
Cutting angle	3 °

Dimensions and weights
Width/depth approx.	1250 mm
Height approx.	1290 mm

Unit: pc(s).
