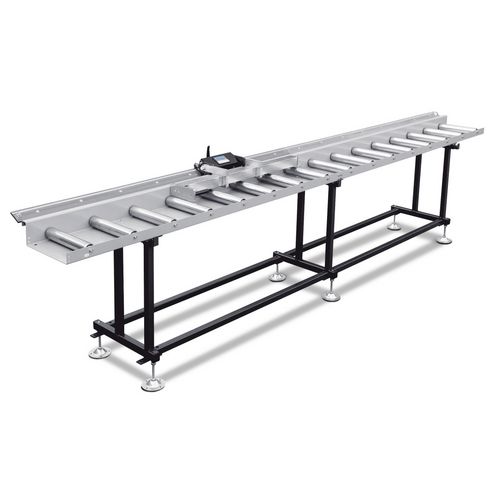

Roller and gauge system
MRB Standard EKF 300 mm / 2 m
In stable construction with a load capacity of 300 kg per meter of roller conveyor
2.515,00
EUR excl. Tax / pc(s).
2.992,85
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3661712
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Stable U-shaped closed construction made of 3 mm sheet steel profile
- Support rollers made of galvanized steel
- All roller conveyors of the MRB standard series also available with plastic rollers
- Supported rollers ball-bearing
- The maximum measuring length is the length of the track minus the stop length 400 mm
- Precision flat steel guide attached to the back of the roller conveyor
- Sturdy, 6-way ball-bearing material stop trolley, easy-moving, manually movable and lockable
- Robust stop arm attached to the stop truck, adjustable to the tool (0 point)
- With length measuring device and digital dimensioning system

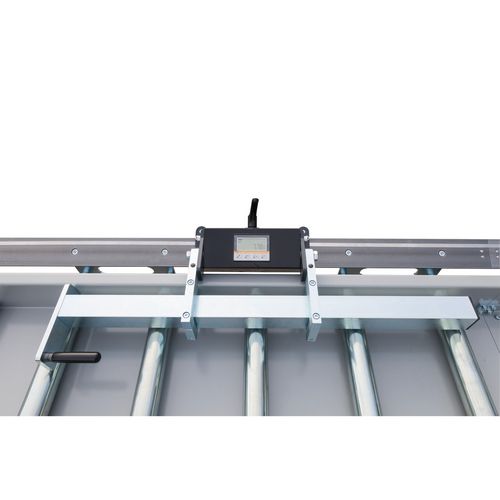

- Roller and measuring track with battery-operated LCD display and magnetic tape measuring system
- Quality Made in Germany
Please specify when ordering mounting side and height!
Working height up to 1020 mm possible with optional foot plates.
By request:
- Working height from 1020 mm can be extended from the factory
- Also with 500 mm web width
| Idler roller diameter | 60 mm |
| Idler roller width | 250 mm |
| Shaft diameter | 15 mm |
| Max. static bearing load | 300 kg/m |
| Maximum measuring length | 1600 mm |
| Number of feet | 2 St |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Max. height | 940 mm |
| Length approx. | 2 m |
| Width/depth approx. | 300 mm |
| Height approx. | 820 mm |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
