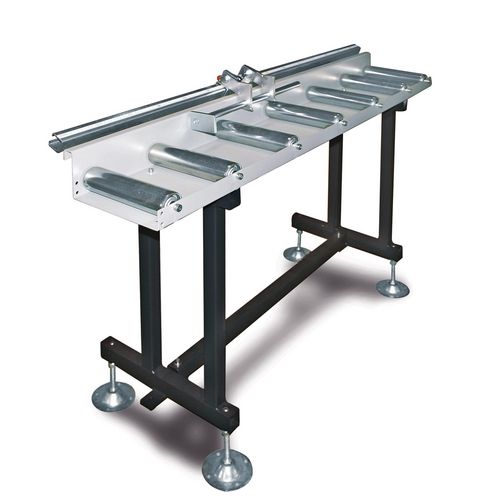

Roller and gauge system
MRB Standard B 300 mm / 6 m
In stable construction with a load capacity of 300 kg per meter of roller conveyor
2.999,00
EUR excl. Tax / pc(s).
3.568,81
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3661216
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Stable U-shaped closed construction made of 3 mm sheet steel profile
- Support rollers made of galvanized steel
- All roller conveyors of the MRB standard series also available with plastic rollers
- Supported rollers ball-bearing
- The maximum measuring length is the length of the track minus the stop length 260 mm
- With length measuring device
- Roller and measuring track with mm-scale, manual measuring system with C-guide profile and sliding flap stop
- Quality Made in Germany
| Idler roller diameter | 60 mm |
| Idler roller width | 250 mm |
| Shaft diameter | 15 mm |
| Max. static bearing load | 300 kg/m |
| Maximum measuring length | 5740 mm |
| Number of feet | 5 St |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Max. height | 940 mm |
| Length approx. | 6 m |
| Width/depth approx. | 300 mm |
| Height approx. | 820 mm |
