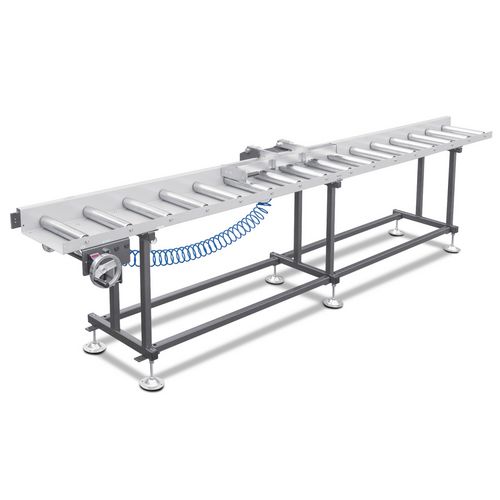

Roller and gauge system
MRB Standard A 300 mm / 3 m
In stable construction with a load capacity of 300 kg per meter of roller conveyor
3.699,00
EUR excl. Tax / pc(s).
4.401,81
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3661113
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Material roller conveyor with stable U-shaped closed construction made of 3 mm sheet steel profile
- Support rollers made of galvanized steel (optionally also available with plastic rollers)
- Supported rollers ball-bearing
- The maximum measuring length is the length of the track minus the stop length 450 mm
- Length measuring device with handwheel adjustment
- Roller and measuring track with digital LED dimension display in mm, electrical connection 230 V, 50 Hz with power supply unit
- Measuring stop adjustable by handwheel from the workplace, with pneumatic brake for measuring fixation
- Sturdy material stop trolley, 12 ball bearings, movable on large dimensioned guide profile. The stop arm is adjustable and hinged.
- For roller conveyors with a length of more than 5 m, a cable drag chain is used
- Mounting side as desired right or left
- 5-digit LED measurement display for constant, millimeter-accurate control of the current position of the stop car
- Position indicator with hollow shaft encoder mounted directly on the drive shaft
- Measuring accuracy / m: ± 0.5 mm
- 900 mm long stop arm
- Stop plate adjustable to zero point and manually hinged backwards
- Multiple ball bearings, thus free of play
- Quality Made in Germany
Equipment details
position indicator
stop arm
| Idler roller diameter | 60 mm |
| Idler roller width | 250 mm |
| Shaft diameter | 15 mm |
| Max. static bearing load | 300 kg/m |
| Maximum measuring length | 2550 mm |
| Number of feet | 3 St |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Max. height | 940 mm |
| Length approx. | 3 m |
| Width/depth approx. | 300 mm |
| Height approx. | 820 mm |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
