| Idler roller diameter | 60 mm |
| Shaft diameter | 15 mm |
| Max. static bearing load | 300 kg/m |
Roller and gauge system
MRB standard
In stable construction with a load capacity of 300 kg per meter of roller conveyor
From 3.089,00
EUR excl. Tax / pc(s).
From 3.675,91
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Price | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Idler roller width (mm) | Maximum measuring length (mm) | Number of feet (St) | VPE | Length approx. (m) | Width/depth approx. (mm) | EUR excl. Tax | EUR incl. 19% Tax | |
| MRB Standard A 300 mm / 2 m | 3661112 | 250 | 1550 | 2 | 1 | 2 | 300 | 3.089,00 | 3.675,91 | |
| MRB Standard A 300 mm / 3 m | 3661113 | 250 | 2550 | 3 | 1 | 3 | 300 | 3.699,00 | 4.401,81 | |
| MRB Standard A 300 mm / 4 m | 3661114 | 250 | 3550 | 3 | 1 | 4 | 300 | 4.335,00 | 5.158,65 | |
| MRB Standard A 300 mm / 5 m | 3661115 | 250 | 4550 | 4 | 1 | 5 | 300 | 4.939,00 | 5.877,41 | |
| MRB Standard A 300 mm / 6 m | 3661116 | 250 | 5550 | 5 | 1 | 6 | 300 | 5.879,00 | 6.996,01 | |
| MRB Standard A 300 mm / 7 m | 3661117 | 250 | 6550 | 5 | 1 | 7 | 300 | 6.565,00 | 7.812,35 | |
| MRB Standard A 300 mm / 8 m | 3661118 | 250 | 7550 | 6 | 1 | 8 | 300 | 7.215,00 | 8.585,85 | |
| MRB Standard A 400 mm / 2 m | 3661122 | 350 | 1550 | 2 | 1 | 2 | 400 | 3.169,00 | 3.771,11 | |
| MRB Standard A 400 mm / 3 m | 3661123 | 350 | 2550 | 3 | 1 | 3 | 400 | 3.815,00 | 4.539,85 | |
| MRB Standard A 400 mm / 4 m | 3661124 | 350 | 3550 | 3 | 1 | 4 | 400 | 4.425,00 | 5.265,75 | |
| MRB Standard A 400 mm / 5 m | 3661125 | 350 | 4550 | 4 | 1 | 5 | 400 | 5.039,00 | 5.996,41 | |
| MRB Standard A 400 mm / 6 m | 3661126 | 350 | 5550 | 5 | 1 | 6 | 400 | 6.115,00 | 7.276,85 | |
| MRB Standard A 400 mm / 7 m | 3661127 | 350 | 6550 | 5 | 1 | 7 | 400 | 6.749,00 | 8.031,31 | |
| MRB Standard A 400 mm / 8 m | 3661128 | 350 | 7550 | 6 | 1 | 8 | 400 | 7.440,00 | 8.853,60 | |
Select Attributes
General
- Idler roller width
- Maximum measuring length
- Number of feet
- VPE
Dimensions and weights
- Length approx.
- Width/depth approx.
Price
- excl. Tax
- incl. 19% Tax
Productdetails

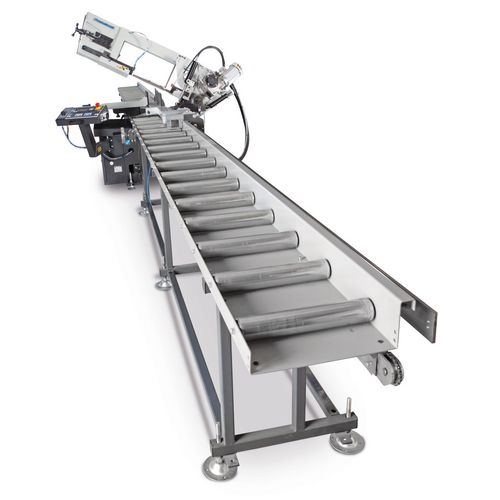

- Material roller conveyor with stable U-shaped closed construction made of 3 mm sheet steel profile
- Support rollers made of galvanized steel (optionally also available with plastic rollers)
- Supported rollers ball-bearing
- The maximum measuring length is the length of the track minus the stop length 450 mm

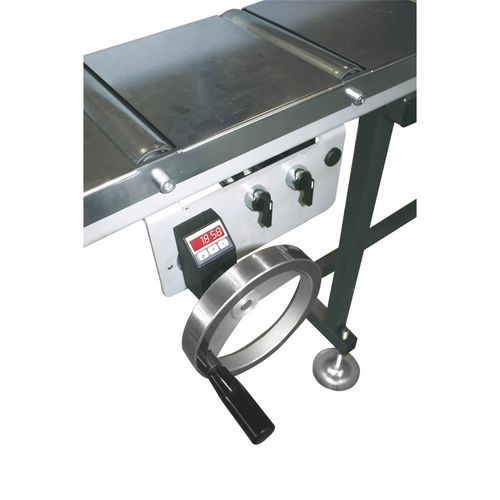

- Length measuring device with handwheel adjustment
- Roller and measuring track with digital LED dimension display in mm, electrical connection 230 V, 50 Hz with power supply unit
- Measuring stop adjustable by handwheel from the workplace, with pneumatic brake for measuring fixation

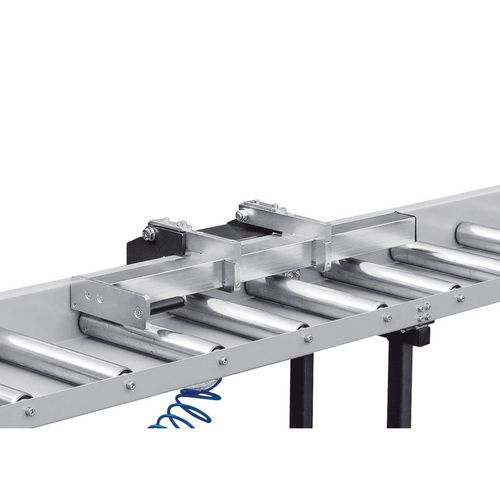

- Sturdy material stop trolley, 12 ball bearings, movable on large dimensioned guide profile. The stop arm is adjustable and hinged.
- For roller conveyors with a length of more than 5 m, a cable drag chain is used
- Mounting side as desired right or left
- 5-digit LED measurement display for constant, millimeter-accurate control of the current position of the stop car
- Position indicator with hollow shaft encoder mounted directly on the drive shaft
- Measuring accuracy / m: ± 0.5 mm
- 900 mm long stop arm
- Stop plate adjustable to zero point and manually hinged backwards
- Multiple ball bearings, thus free of play
- Quality Made in Germany
Equipment details
position indicator
stop arm
| Dimensions and weights | |
|---|---|
| Max. height | 940 mm |
| Height approx. | 820 mm |
