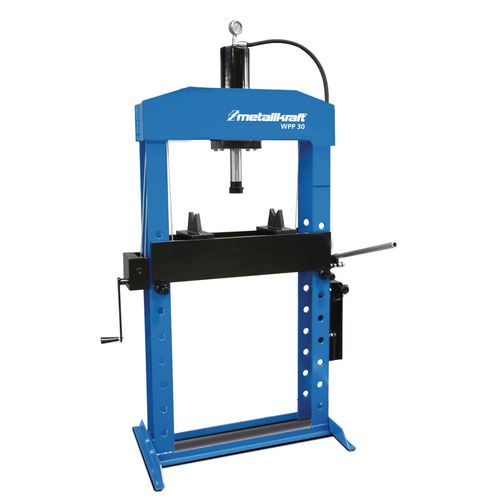

Hydraulic workshop press
WPP 30
With movable cylinder and hand pump
2.119,00
EUR excl. Tax / pc(s).
2.521,61 EUR incl. 19% Tax / pc(s).
2.521,61 EUR incl. 19% Tax / pc(s).
Promotional price *
1.899,00 EUR excl. Tax / pc(s).2.259,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 4001030
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For all repair and assembly work, e.g.: alignment of axles, beams, shafts, etc.; pressing and pressing bearings, bolts and bushings; pressing and squeezing work; load tests and welding sample tests; and much more
- Stable welded construction
- Robust frame with perforation for the adjustment of the press table
- Reliable, very precise hydraulic from European production
- With chrome-plated cylinder pistons
- Pressing pressure readable via manometer
- With automatic return of the piston with safety valve to protect against overload
- For processing flat material, pressing in bearings, bolts and the like, it is essential to use the optional perforated plates
- Quality Made in Europe
| Pressure force | 30 t |
| Max. load on prism jaw | 7.5 t |
| Piston stroke | 160 mm |
| Piston travel | 450 mm |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Clear width | 710 mm |
| Max. installation height | 1000 mm |
| Frame depth | 150 mm |
| Length approx. | 1150 mm |
| Width/depth approx. | 600 mm |
| Height approx. | 1980 mm |
| Weight approx. | 230 kg |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- 2-piece prism set for inserting round material
- Winch for raising and lowering the table
