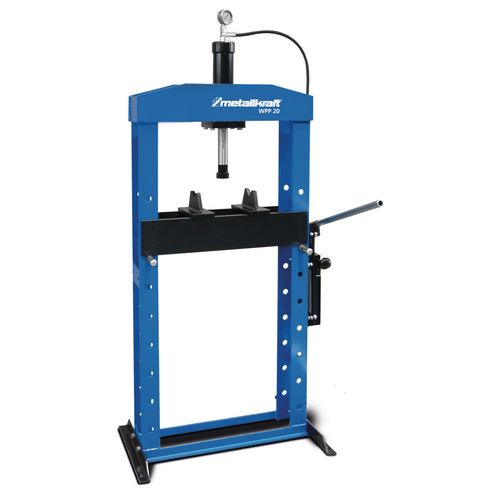

WPP 20

With movable cylinder and hand pump

1.269,00 EUR excl. Tax / pc(s).
1.510,11 EUR incl. 19% Tax / pc(s).

Promotional price *

1.149,00 EUR excl. Tax / pc(s).
1.367,31 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 4001020

Are you interested in this product?

Put a request

Find Trader

Productdetails

For all repair and assembly work, e.g.: alignment of axles, beams, shafts, etc .; pressing and pressing bearings, bolts and bushings; pressing and squeezing work; load tests and welding sample tests; and much more
Stable welded construction
Robust frame with perforation for the adjustment of the press table
Reliable, very precise hydraulic from European production
With chrome-plated cylinder pistons
Pressing pressure readable via manometer
With automatic return of the piston with safety valve to protect against overload
For processing flat material, pressing in bearings, bolts and the like, it is essential to use the optional perforated plates
Quality made in Europe

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Pressure force	20 t
Max. load on prism jaw	5 t
Piston stroke	160 mm
Piston travel	380 mm
VPE	1

Dimensions and weights
Clear width	610 mm
Max. installation height	1000 mm
Frame depth	150 mm
Length approx.	950 mm
Width/depth approx.	600 mm
Height approx.	1900 mm
Weight approx.	140 kg

Unit: pc(s).
Packaging unit: 1

2-piece prism set for inserting round material
