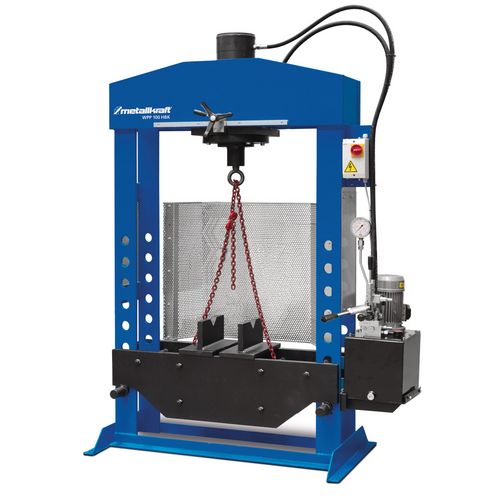

Hydraulic workshop press
WPP 100 HBK
Heavy duty with moving piston and two piston speeds
9.950,00
EUR excl. Tax / pc(s).
11.840,50 EUR incl. 19% Tax / pc(s).
11.840,50 EUR incl. 19% Tax / pc(s).
Promotional price *
9.259,00 EUR excl. Tax / pc(s).11.018,21 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 4013100
Are you interested in this product?
Put a request
Find Trader
Productdetails

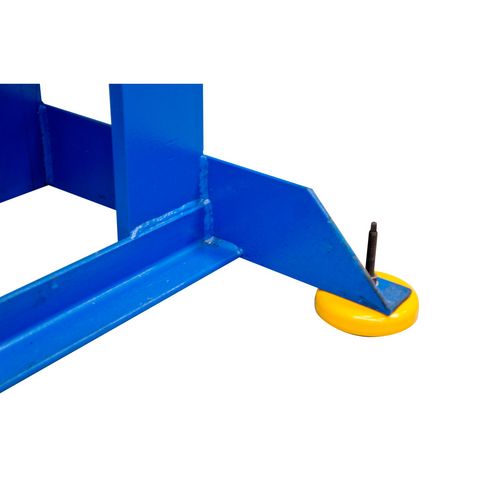

- Increased stability due to improved design of the machine base, cylinder adjustment via handle and hand wheel, manometer on the machine side
- Suitable for assembly and straightening work as well as for workpiece checks or the pressing and pressing of bearings and other components
- Ideal for technical workshops, repair shops and technical training facilities

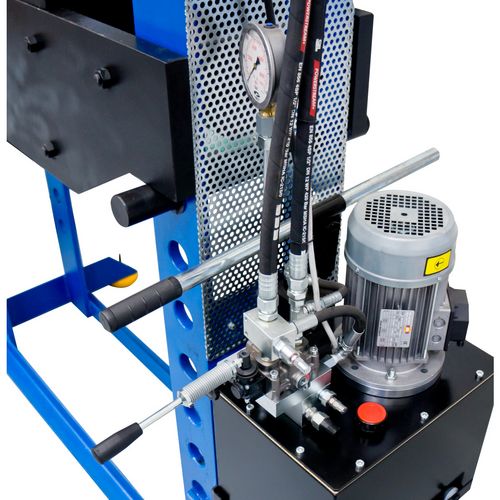

- With two piston speeds and pressure regulation by throttle screw
- Pressure gauge for pressure gauge
- Heavy machine frame welded from steel profiles to absorb the resulting compressive force of the cylinder
- The hydraulics work extremely precisely in both electrical and manual mode

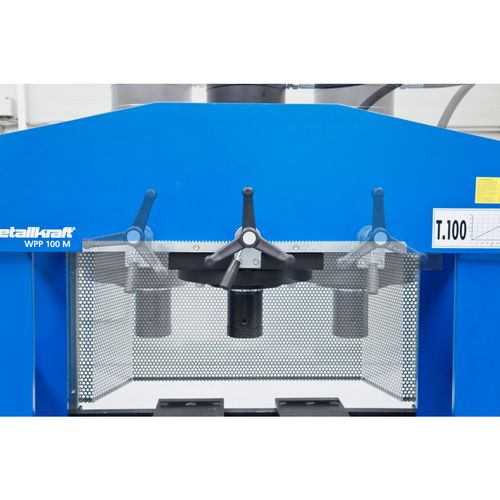

- Adjustment of the cylinder via rack to handwheel
- Heavy and robust welded construction
- More extensive accessories
- Quality made in Europe
| Pressure force | 100 t |
| Piston stroke | 320 mm |
| Piston travel | 550 mm |
| Lowering speed | 10 mm/s |
| Press speed | 1.5 mm/s |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Clear width | 1030 mm |
| Max. installation height | 1000 mm |
| Frame depth | 265 mm |
| Length approx. | 1600 mm |
| Width/depth approx. | 850 mm |
| Height approx. | 2280 mm |
| Weight approx. | 1205 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1,5 kW |
| Supply voltage | 400 V |
| Hydraulic system | |
|---|---|
| Hydraulic oil tank capacity | 30 l |
| Hydraulic oil operating capacity | 25 l |
