| Pressure force | 200 t |
| Piston stroke | 508 mm |
| Piston travel | 508 mm |
| Lowering speed | 8.5 mm/s |
| Press speed | 2 mm/s |
| Return speed | 10.3 mm/s |
| VPE | 1 |

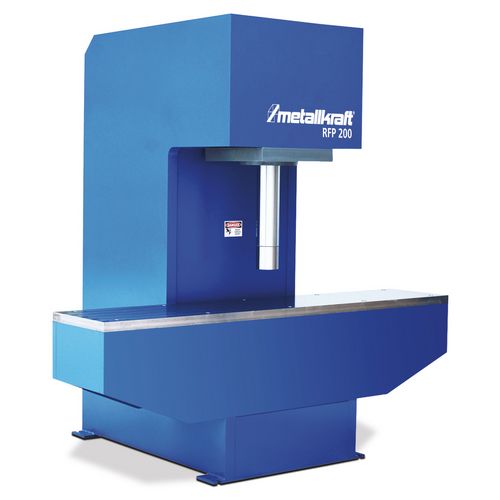

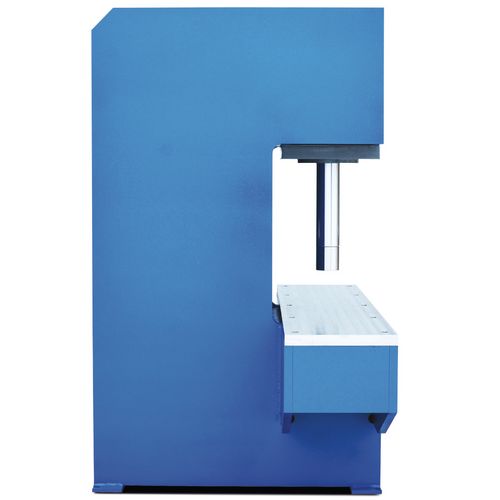

Straightening Press
RFP 200
For removing deformations and stresses from metal pieces
52.690,00
EUR excl. Tax / pc(s).
62.701,10 EUR incl. 19% Tax / pc(s).
62.701,10 EUR incl. 19% Tax / pc(s).
Promotional price *
44.799,00 EUR excl. Tax / pc(s).53.310,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 4054200
Are you interested in this product?
Put a request
Find Trader
Productdetails
- With pressure mandrel adapter for 2 different pressing diameters of the cylinders
- Pressure-sensitive hand levers for regulating the feed rates
- Big work table
Quality Made in Canada
| Dimensions and weights | |
|---|---|
| Diameter cylinder | 305 mm |
| Diameter piston rod | 127 mm |
| Diameter piston head | 305 mm |
| Reach | 305 mm |
| Clear height max. | 610 mm |
| Frame depth | 813 mm |
| Width/depth of machine feet | 1473 mm |
| Work table width | 508 mm |
| Work table length | 2438 mm |
| Depth without foot | 1473 mm |
| Length approx. | 2438 mm |
| Width/depth approx. | 1473 mm |
| Height approx. | 2458 mm |
| Weight approx. | 5818 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 7,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Hydraulic system | |
|---|---|
| Oil capacity (empty cylinder) | 149 l |
Unit: pc(s).
