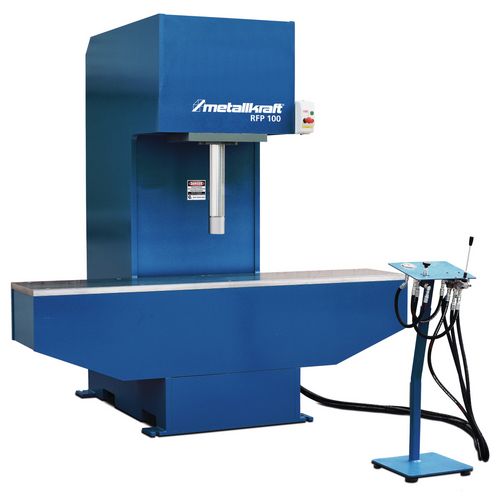

    Straightening Press

    RFP

    For removing deformations and stresses from metal pieces

    From 33.650,00 EUR excl. Tax / pc(s).
    From 40.043,50 EUR incl. 19% Tax / pc(s).
    Promotional price *
    From 29.599,00 EUR excl. Tax / pc(s).
    From 35.222,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Variations

    GeneralDimensions and weights Price Promotional price *
    TitleArt.-No.Pressure force (t)Piston stroke (mm)Lowering speed (mm/s)Press speed (mm/s)Return speed (mm/s)VPE Piston travel Diameter piston rod (mm)Clear height max. (mm)Height approx. (mm)Weight approx. (kg)Diameter cylinder Diameter piston head Frame depth Width/depth of machine feet EUR excl. TaxEUR incl. 19% TaxEUR excl. TaxEUR incl. 19% Tax
    RFP 10040541001004066.76.78.31101.66862438375033.650,0040.043,5029.599,0035.222,81
    RFP 20040542002005088.5210.3150812761024585818305305813147352.690,0062.701,1044.799,0053.310,81
    Select Attributes
    General
    Dimensions and weights
    Price
    Promotional price

    Productdetails

    • With pressure mandrel adapter for 2 different pressing diameters of the cylinders for different applications
    • Pressure-sensitive hand levers for regulating the feed rates

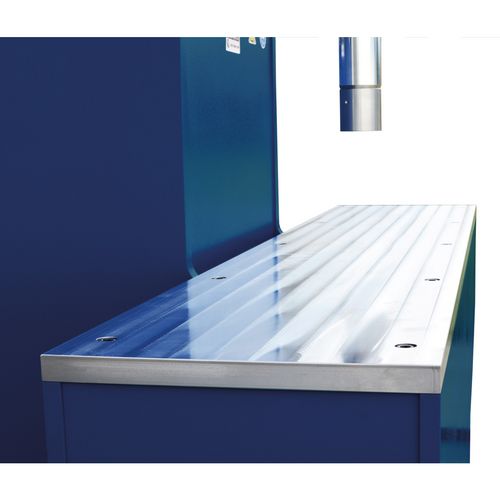

    • Large work table (508 mm x 2438 mm)



    Dimensions and weights
    Reach305 mm
    Work table width508 mm
    Work table length2438 mm
    Depth without foot1473 mm
    Length approx.2438 mm
    Width/depth approx.1473 mm
    Electrical Data
    Drive motor output7,5 kW
    Supply voltage400 V
    Mains frequency50 Hz

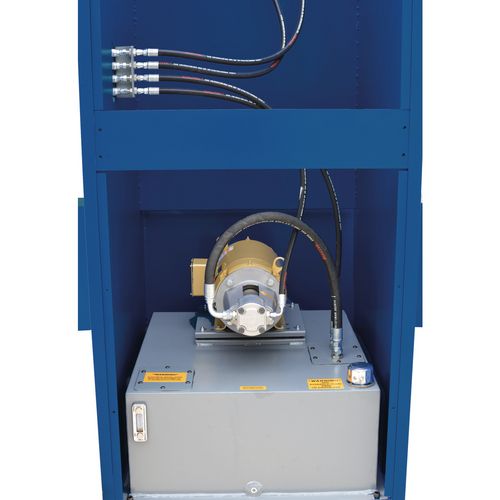

    Hydraulic system
    Oil capacity (empty cylinder)149 l
    Unit: pc(s).
