| Piston stroke | 406 mm |

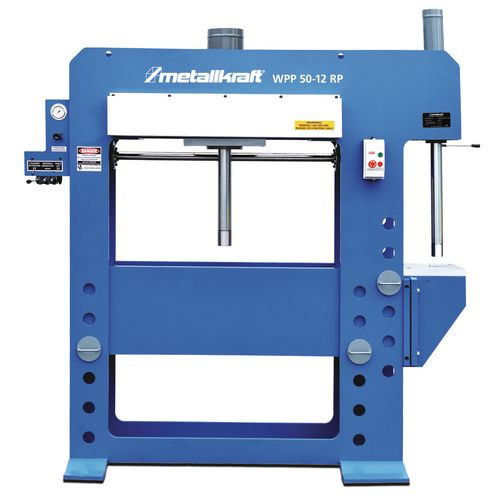

Fully hydraulic workshop press
WPP RP
Flexible work by movable master cylinder, with lateral Räumveresse.
From
18.390,00
EUR excl. Tax / pc(s).
From 21.884,10 EUR incl. 19% Tax / pc(s).
From 21.884,10 EUR incl. 19% Tax / pc(s).
Promotional price *
From 15.899,00 EUR excl. Tax / pc(s).From 18.919,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Broaching press | Dimensions and weights | Electrical Data | Hydraulic system | Price | Promotional price * | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Pressure force (t) | Lowering speed (mm/s) | Press speed (mm/s) | Return speed (mm/s) | VPE | Pressure force (t) | Return speed (mm/s) | Work table length (mm) | Length of piston nose (mm) | Diameter cylinder (mm) | Diameter piston rod (mm) | Clear height max. (mm) | Frame depth (mm) | Work table width (mm) | Depth without foot (mm) | Weight approx. (kg) | Drive motor output (kW) | Oil capacity (empty cylinder) (l) | EUR excl. Tax | EUR incl. 19% Tax | EUR excl. Tax | EUR incl. 19% Tax | |
| WPP 50-12 RP | 4051050 | 50 | 6.5 | 6.5 | 8.0 | 1 | 12 | 32.8 | 273 | 31,75 | 178 | 76.2 | 1015 | 279 | 273 | 305 | 1409 | 3.7 | 38 | 15.899,00 | 18.919,81 | |||
| WPP 100-20 RP | 4051100 | 100 | 6.7 | 6.7 | 8.3 | 1 | 20 | 55.7 | 311 | 38.1 | 228 | 101.6 | 964 | 317 | 311 | 1864 | 7,5 | 56 | 21.699,00 | 25.821,81 | ||||
Select Attributes
General
- Pressure force
- Lowering speed
- Press speed
- Return speed
- VPE
Broaching press
- Pressure force
- Return speed
- Work table length
- Length of piston nose
Dimensions and weights
- Diameter cylinder
- Diameter piston rod
- Clear height max.
- Frame depth
- Work table width
- Depth without foot
- Weight approx.
Electrical Data
- Drive motor output
Hydraulic system
- Oil capacity (empty cylinder)
Price
- excl. Tax
- incl. 19% Tax
Promotional price
- excl. Tax
- incl. 19% Tax
Productdetails
- For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, press work, load tests, weld test tests and much more
- With pressure mandrel adapter for two different pressing diameters of the cylinders for different applications

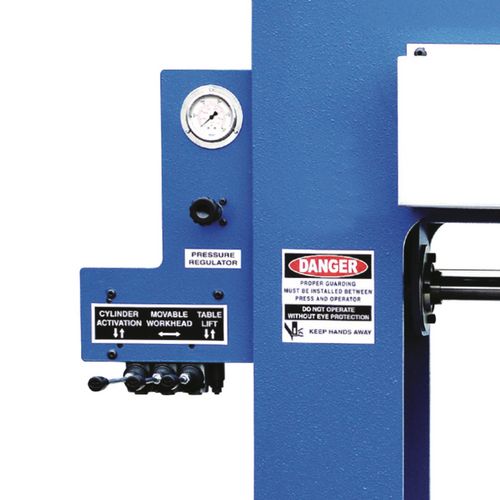

- Hydraulic control of the stroke and the right / left movement of the cylinder and the height adjustment of the table
- Master cylinder laterally movable via lever
- Pressure-sensitive hand levers for regulating the feed rates
- Combined with broaching press
- Pressing pressure readable via manometer
- The low pressure hydraulic system keeps the oil temperature low to ensure greater efficiency and safe operation
Quality Made in Canada
- Two-pressing combination
| Broaching press | |
|---|---|
| Piston stroke | 508 mm |
| Lowering speed | 10 mm/s |
| Press speed | 10 mm/s |
| Diameter cylinder housing | 114 mm |
| Diameter cylinder | 102 mm |
| Diameter piston rod | 63.5 mm |
| Hole spacing for table height adjustment | 152 mm |
| Work table width | 330 mm |
| Dimensions and weights | |
|---|---|
| Clear width | 1218 mm |
| Hole spacing for table height adjustment | 152 mm |
| Width/depth of machine feet | 812 mm |
| Work table length | 1218 mm |
| Length approx. | 2081 mm |
| Width/depth approx. | 812 mm |
| Height approx. | 2157 mm |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
