| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |

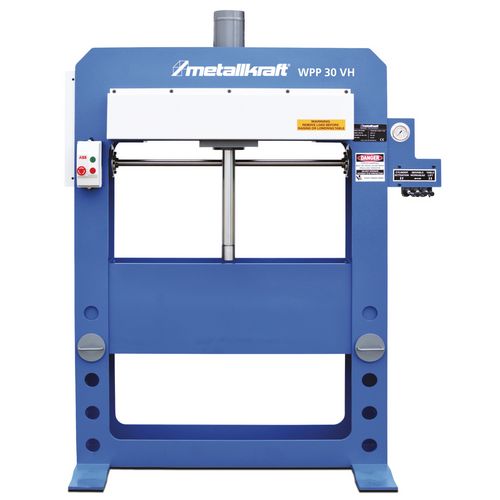

Fully hydraulic workshop press
WPP
Robust construction with movable cylinder
From 10.575,00
EUR excl. Tax / pc(s).
From 12.584,25
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Hydraulic system | Price | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Pressure force (t) | Piston stroke (mm) | Piston travel (mm) | Lowering speed (mm/s) | Press speed (mm/s) | Return speed (mm/s) | Pressure regulation | Explanation pressure regulation | VPE | Diameter cylinder (mm) | Diameter piston rod (mm) | Diameter piston head (mm) | Clear width (mm) | Clear height max. (mm) | Hole spacing for table height adjustment (mm) | Frame depth (mm) | Width/depth of machine feet (mm) | Work table width (mm) | Work table length (mm) | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Depth without foot | Drive motor output (kW) | Oil capacity (empty cylinder) (l) | EUR excl. Tax | EUR incl. 19% Tax | |
| WPP 30 VH | 4050030 | 30 | 406 | 501 | 6.1 | 6.1 | 8.2 | Not available | Pressure regulation is only available for models with 50t pressure force or higher | 1 | 127 | 63.5 | 127 | 1066 | 863 | 152 | 235 | 761 | 228 | 1066 | 1371 | 761 | 1904 | 727 | 2,4 | 38 | 10.575,00 | 12.584,25 | ||
| WPP 50 VH | 4050050 | 50 | 406 | 603 | 6.5 | 6.5 | 8 | 1 | 178 | 76.2 | 178 | 1218 | 1015 | 152 | 279 | 812 | 273 | 1218 | 1624 | 812 | 2157 | 1091 | 3.7 | 38 | 14.350,00 | 17.076,50 | ||||
| WPP 100 VH | 4050100 | 100 | 406 | 406 | 6.7 | 6.7 | 8.3 | 1 | 228 | 101.6 | 228 | 1218 | 964 | 152 | 317 | 812 | 311 | 1218 | 1624 | 812 | 2157 | 1455 | 7,5 | 56 | 20.490,00 | 24.383,10 | ||||
| WPP 200 VH | 4050200 | 200 | 508 | 508 | 7.8 | 1.3 | 9.5 | 1 | 305 | 126 | 305 | 1523 | 761 | 203 | 508 | 1066 | 500 | 1523 | 2132 | 1066 | 2386 | 3455 | 559 | 7,5 | 76 | 35.490,00 | 42.233,10 | |||
| WPP 300 VH | 4050300 | 300 | 508 | 508 | 6.2 | 1.4 | 7.7 | 1 | 355 | 152.4 | 355 | 1523 | 723 | 203 | 609 | 1167 | 602 | 1523 | 2132 | 1167 | 2386 | 5910 | 686 | 7,5 | 76 | 50.900,00 | 60.571,00 | |||
Select Attributes
General
- Pressure force
- Piston stroke
- Piston travel
- Lowering speed
- Press speed
- Return speed
- Pressure regulation
- Explanation pressure regulation
- VPE
Dimensions and weights
- Diameter cylinder
- Diameter piston rod
- Diameter piston head
- Clear width
- Clear height max.
- Hole spacing for table height adjustment
- Frame depth
- Width/depth of machine feet
- Work table width
- Work table length
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
- Depth without foot
Electrical Data
- Drive motor output
Hydraulic system
- Oil capacity (empty cylinder)
Price
- excl. Tax
- incl. 19% Tax
Productdetails
- For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, press work, load tests, weld test tests and much more

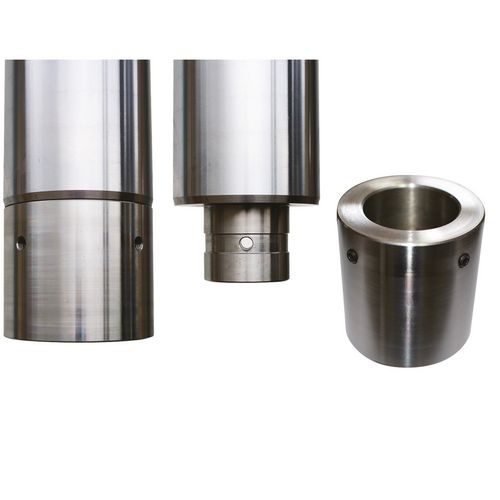

- With pressure mandrel adapter for two different pressing diameters of the cylinders
- Hydraulic control of the stroke and the right / left movement of the cylinder and the height adjustment of the table
- Cylinder can be moved laterally via lever
- Pressure-sensitive hand levers for regulating the feed rates
- Pressing pressure readable via manometer
Quality Made in Canada
