| Electrical Data | |
|---|---|
| Drive motor output | 7,5 kW |

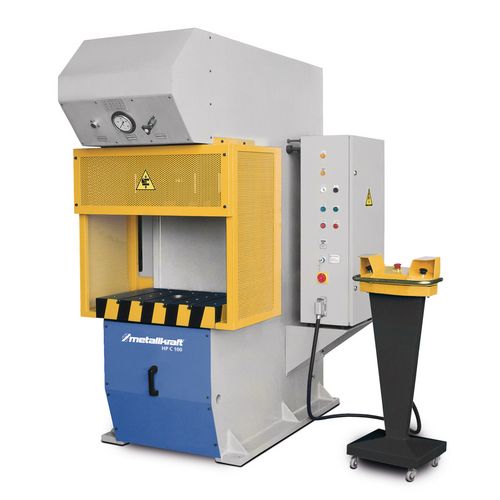

Hydraulic C-pillar press
HP C
Bending, embossing, stamping and pressing with individual tools
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Price | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Pressure force (t) | Piston stroke (mm) | Lowering speed (mm/s) | Press speed (mm/s) | Return speed (mm/s) | VPE | Work table bore diameter (mm) | Work table length (mm) | Work table width (mm) | Max. installation height (mm) | Plunger plate length x width (mm) | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | EUR excl. Tax | EUR incl. 19% Tax | |
| HP C 30 | 4022030 | 30 | 200 | 54 | 18 | 90 | 1 | 80 | 700 | 450 | 400 | 380 x 500 | 1680 | 850 | 2250 | 2950 | Price upon request | - | |
| HP C 60 | 4022060 | 60 | 250 | 26 | 8.5 | 47 | 1 | 100 | 750 | 500 | 450 | 430 x 500 | 1820 | 960 | 2400 | 4000 | Price upon request | - | |
| HP C 100 | 4022100 | 100 | 300 | 17.5 | 5.5 | 37 | 1 | 120 | 1100 | 600 | 500 | 420 x 680 | 1900 | 1300 | 2750 | 5400 | Price upon request | - | |
| HP C 150 | 4022150 | 150 | 300 | 10 | 3.5 | 22 | 1 | 120 | 1100 | 700 | 500 | 500 x 750 | 2300 | 1400 | 2750 | 7700 | Price upon request | - | |
Select Attributes
General
- Pressure force
- Piston stroke
- Lowering speed
- Press speed
- Return speed
- VPE
Dimensions and weights
- Work table bore diameter
- Work table length
- Work table width
- Max. installation height
- Plunger plate length x width
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Price
- excl. Tax
- incl. 19% Tax
Productdetails
- Operation via mobile two-hand console
- Upper cheek fourfold
- Table and tappet plate with T-slots for fixing devices and tools
- Stepless pressure adjustment
- Pressure gauge for reading the set press force
Unit: pc(s).
